Individual hose record
4454734 Hose Repair Specifications
Excavator · Hitachi · ZX450LC-3 · Attachments
Finished length250 mm
Locate this hose

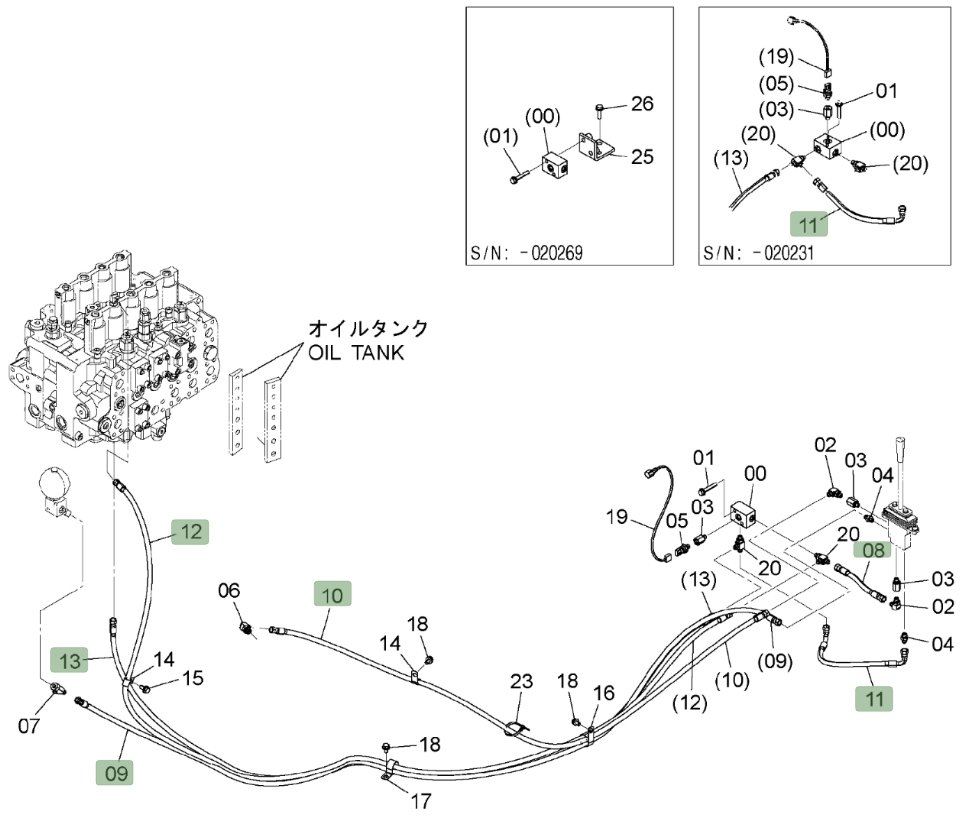

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 4454734 before removing the hose.
Repair specifications
- Part number
- 4454734
- Diagram pipe number
- 8
- Installation route
- 配重自卸手柄~过渡阀块(配重自卸)
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 250 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
