Individual hose record
4644625 Hose Repair Specifications
Excavator · Hitachi · ZX225USLC-3 · Hydraulic Pump
Finished length680 mm
Locate this hose

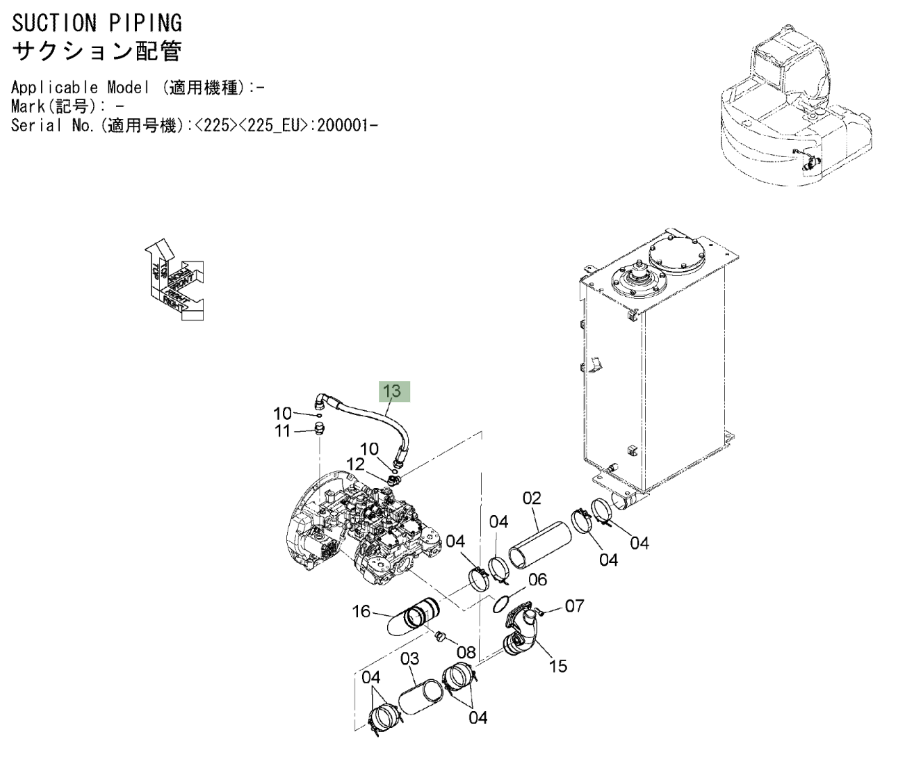

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4644625 before removing the hose.
Repair specifications
- Part number
- 4644625
- Diagram pipe number
- 13
- Installation route
- 液压泵~吸油铁管
- Hose specification
- DN19;2SN-12;21.5MPa
- Finished length
- 680 mm
- Working pressure
- 21.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
