Individual hose record
73050200B421 Hose Repair Specifications
Excavator · Sunward · SWE150E · Control Valve
Finished length410 mm
Locate this hose

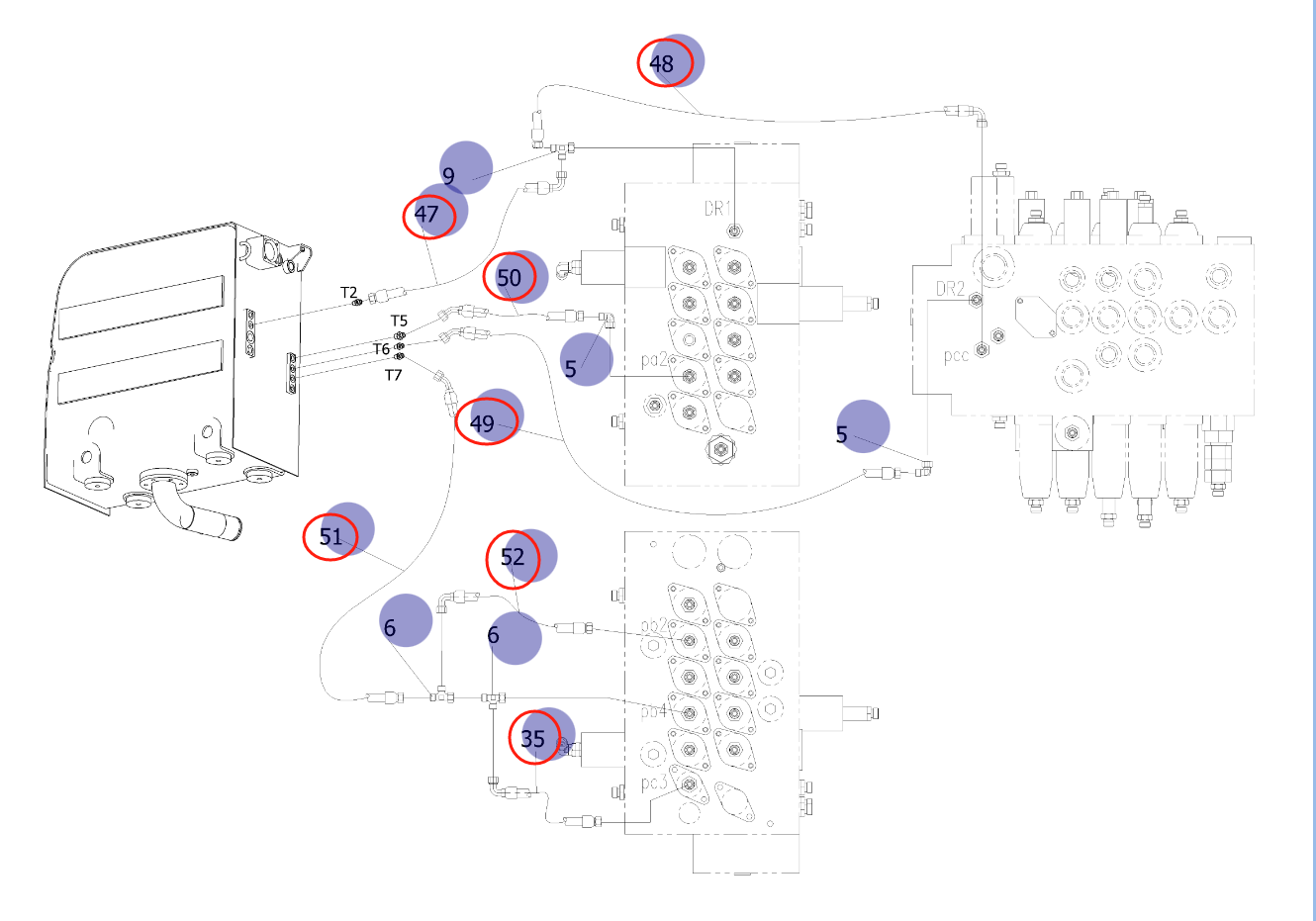

Installation diagram — Pipe No. 50
Locate Pipe No. 50 in the diagram, then confirm part number 73050200B421 before removing the hose.
Repair specifications
- Part number
- 73050200B421
- Diagram pipe number
- 50
- Installation route
- 分配阀PA2~液压油箱T5
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 410 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 45°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
