KLJ10660 Hose Repair Specifications

Excavator · Case · CX130D LC · Boom Assembly

Finished length750 mm

Locate this hose

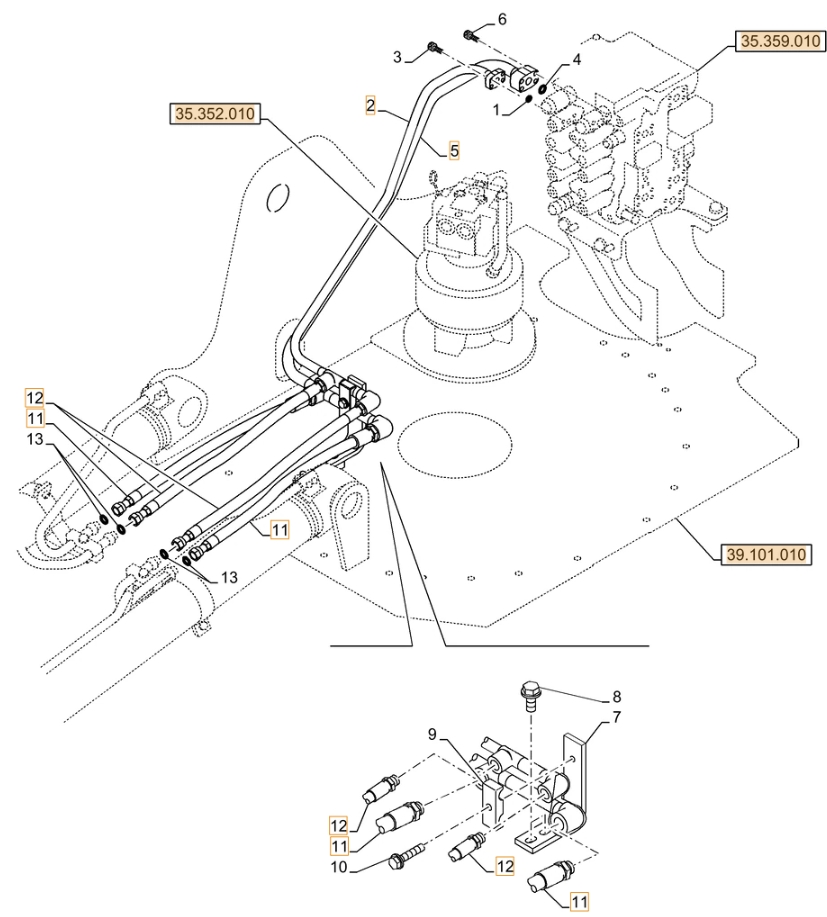

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KLJ10660 before removing the hose.

Part number: KLJ10660
Diagram pipe number: 11
Installation route: 大臂油缸左4
Hose specification: DN16;4SP-10;38MPa
Finished length: 750 mm
Working pressure: 38 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 11

Installation route: 大臂油缸左1

Length: 750 mm
Specification: DN16;4SP-10;38MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 7

Installation route: 小臂油缸

Length: 850 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹(美制内螺纹)平面密封
