Individual hose record

KHJ16200 Hose Repair Specifications

Excavator · Case · CX370D NLC · Control Valve

Finished length400 mm

Locate this hose

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number KHJ16200 before removing the hose.

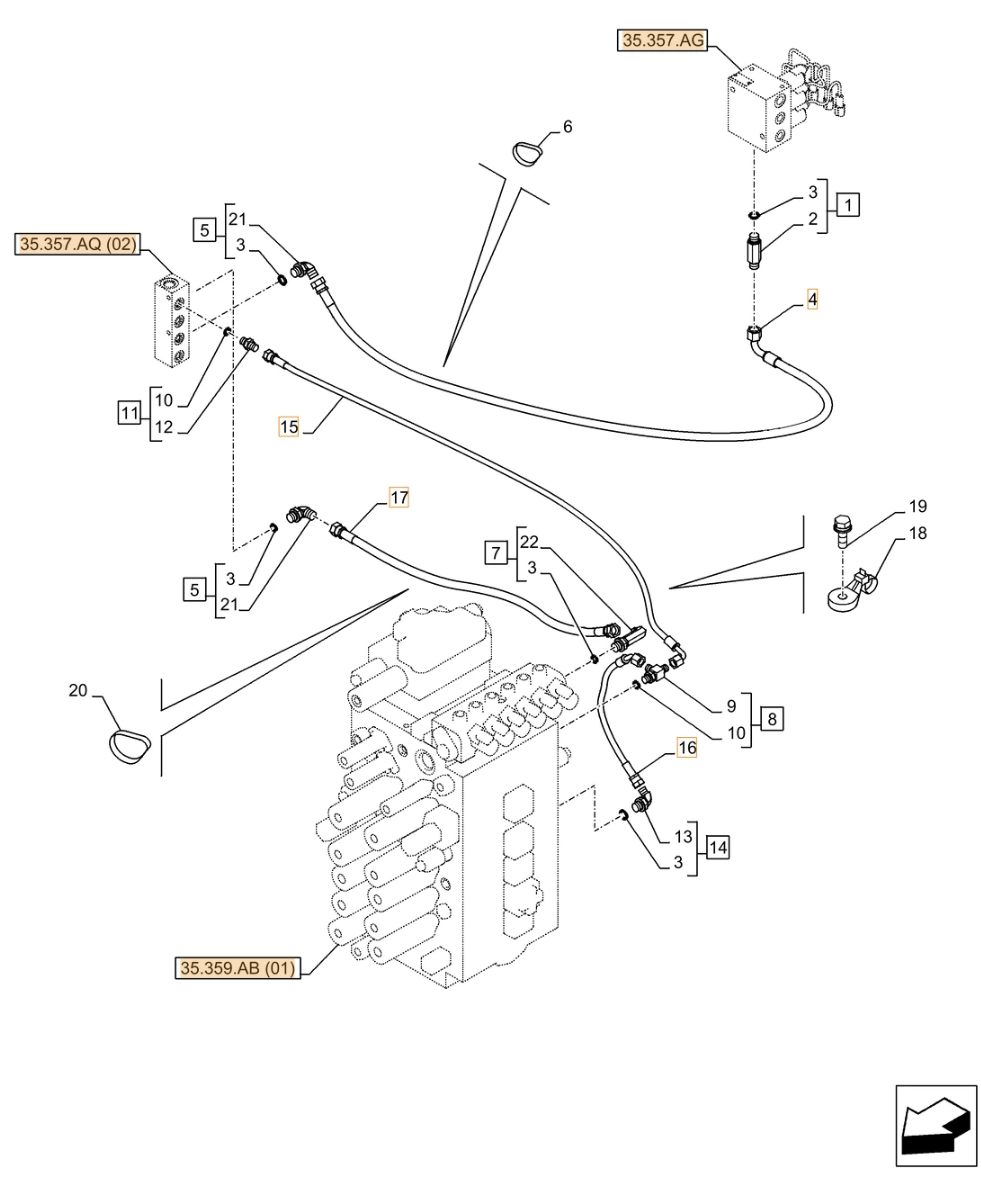

Case CX370D NLC installation diagram showing hydraulic hose KHJ16200 at Pipe No. 16 — **Case CX370D NLC**Part KHJ16200 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: KHJ16200
Diagram pipe number: 16
Installation route: 分配阀后左~电磁阀(分配阀)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 400 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1
