Individual hose record
4436884 Hose Repair Specifications
Excavator · Hitachi · ZX450LC · Hydraulic Pump
Finished length600 mm
Locate this hose

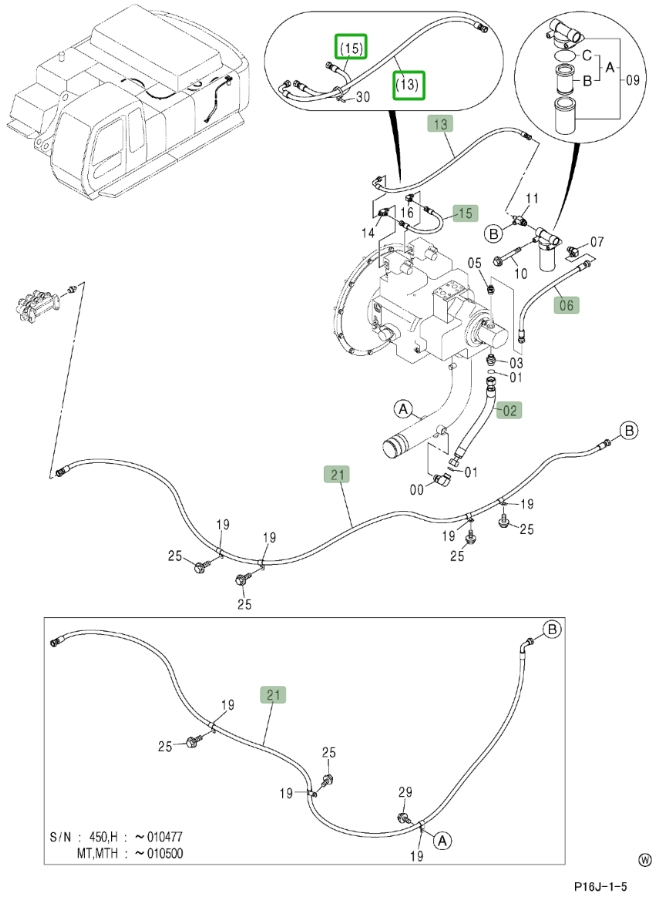

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4436884 before removing the hose.
Repair specifications
- Part number
- 4436884
- Diagram pipe number
- 6
- Installation route
- 先导泵~先导滤芯
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 600 mm
- Working pressure
- 16 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
