Individual hose record

KHJ2312 Hose Repair Specifications

Excavator · Case · CX180C-8 LC · Hydraulic Tank

Finished length2,500 mm

Locate this hose

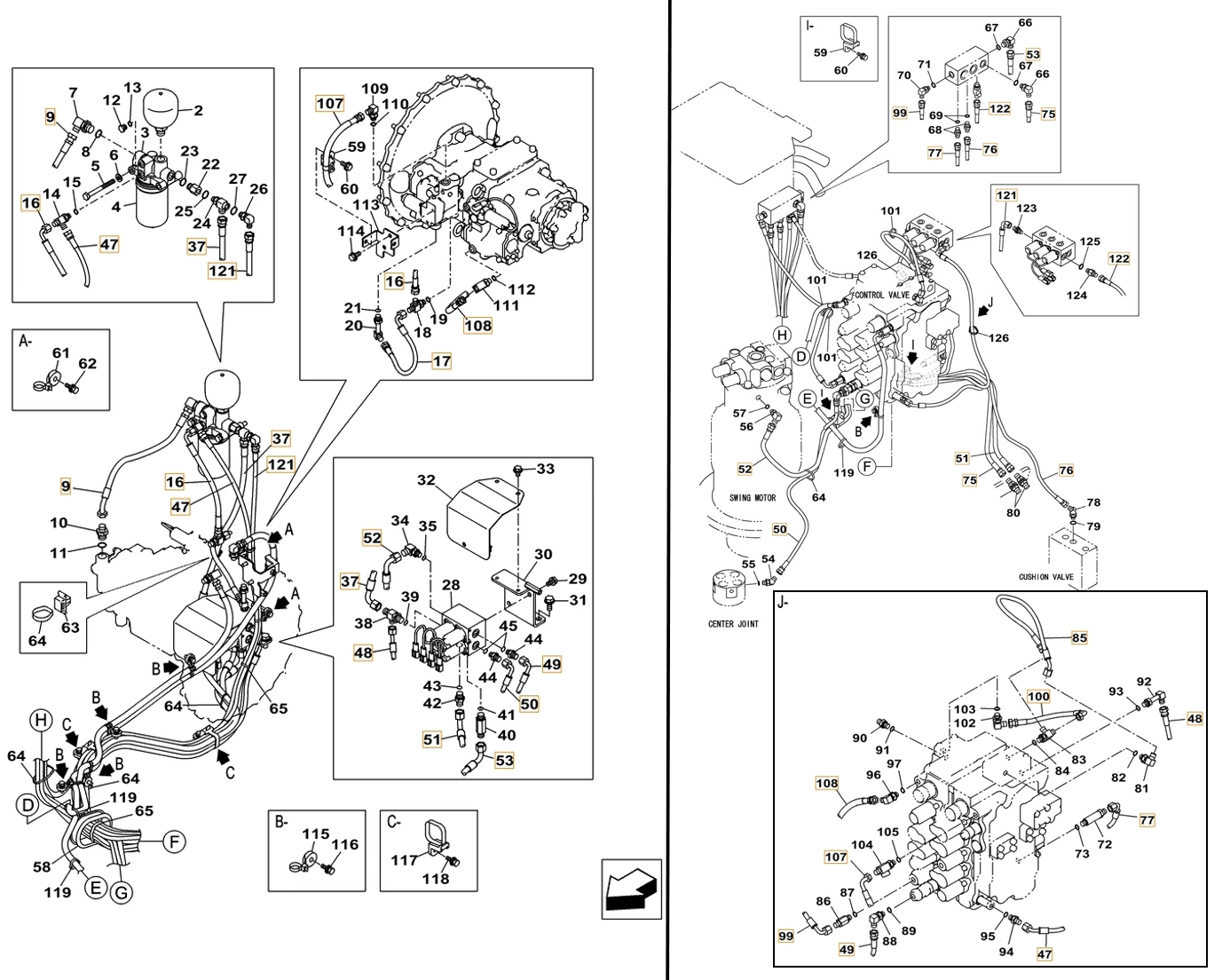

Installation diagram — Pipe No. 122

Locate Pipe No. 122 in the diagram, then confirm part number KHJ2312 before removing the hose.

Part number: KHJ2312
Diagram pipe number: 122
Installation route: 液压油箱~电磁阀(分配阀上)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,500 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 76

Installation route: 液压油箱~缓冲阀

Length: 2,200 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 75

Installation route: 液压油箱~接头(进回油阀)

Length: 1,900 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
