4633974 Hose Repair Specifications

Excavator · Hitachi · ZX450LC-3 · Engine Oil Lines

Finished length700 mm

Locate this hose

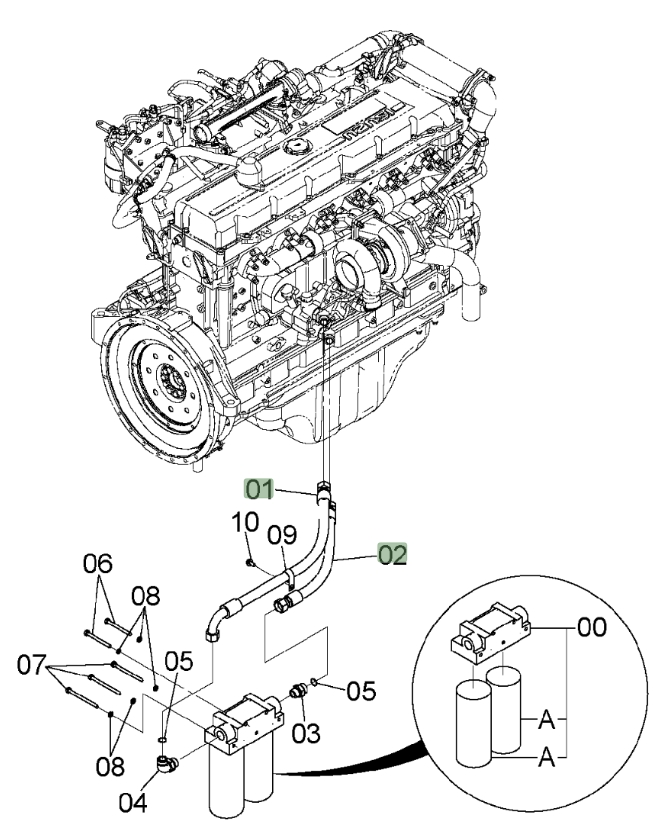

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 4633974 before removing the hose.

Part number: 4633974
Diagram pipe number: 2
Installation route: 机油管
Hose specification: DN25;2SN-16;16.5MPa
Finished length: 700 mm
Working pressure: 16.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 1

Installation route: 机油管

Length: 1,000 mm
Specification: DN25;2SN-16;16.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
