Individual hose record
KNJ14600 Hose Repair Specifications
Excavator · Case · CX130C W/B · Control Valve
Finished length370 mm
Locate this hose

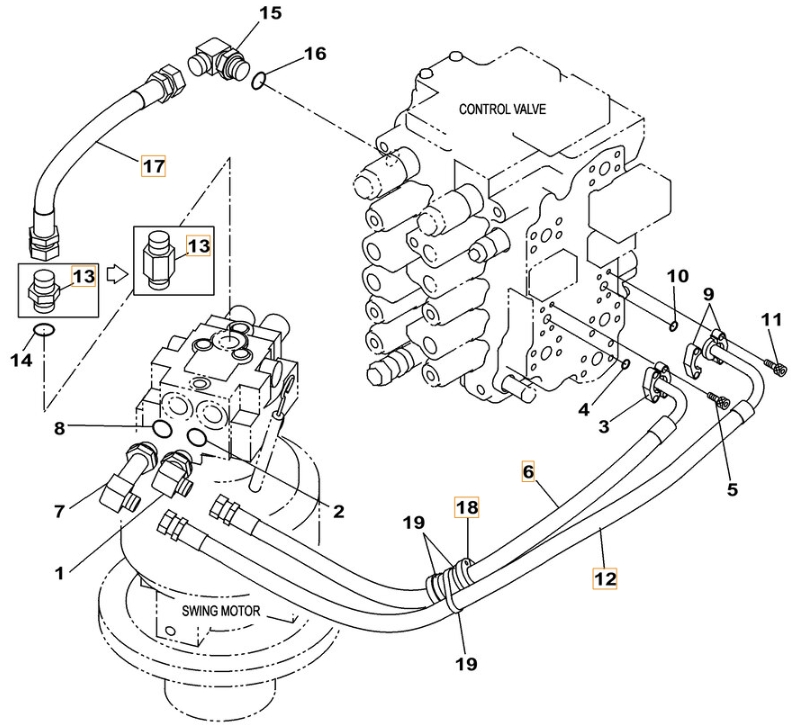

Installation diagram — Pipe No. 17
Locate Pipe No. 17 in the diagram, then confirm part number KNJ14600 before removing the hose.
Repair specifications
- Part number
- KNJ14600
- Diagram pipe number
- 17
- Installation route
- 分配阀右~回转马达(回油)
- Hose specification
- DN19;1SN-12;10.5MPa
- Finished length
- 370 mm
- Working pressure
- 10.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
