Individual hose record

DS2054292 Hose Repair Specifications

Excavator · Doosan · DX80R · Hydraulic Tank

Finished length2,000 mm

Locate this hose

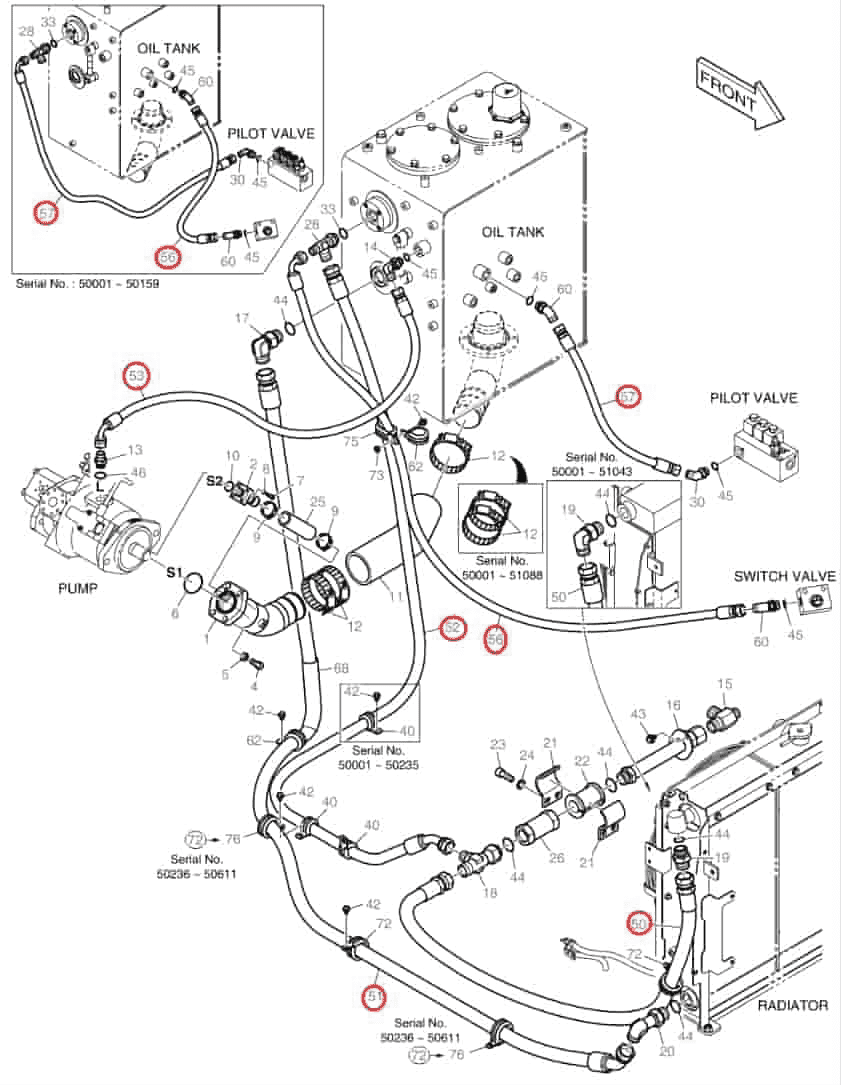

Installation diagram — Pipe No. 51

Locate Pipe No. 51 in the diagram, then confirm part number DS2054292 before removing the hose.

Part number: DS2054292
Diagram pipe number: 51
Installation route: 液压油箱~散热器下
Hose specification: DN25;2SN-16;16.5MPa
Finished length: 2,000 mm
Working pressure: 16.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 69

Installation route: 液压油箱~减压阀T口

Length: 350 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 56

Installation route: 液压油箱~开关阀

Length: 1,890 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 57

Installation route: 液压油箱~电磁阀

Length: 700 mm
Specification: DN13;1SN-08;16MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
