Individual hose record
4258882 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-5A · Grease Lines
Finished length2,300 mm
Locate this hose

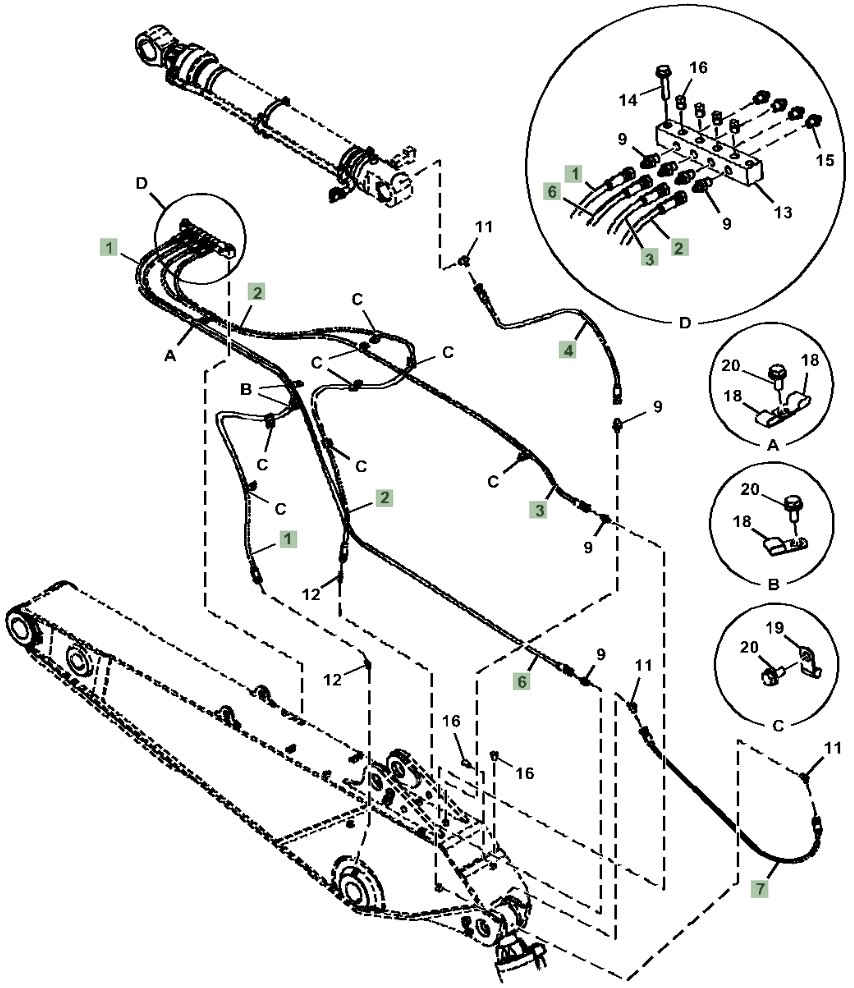

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4258882 before removing the hose.
Repair specifications
- Part number
- 4258882
- Diagram pipe number
- 2
- Installation route
- 右小臂销黄油管
- Hose specification
- DN6;2层纤维-4;14MPa
- Finished length
- 2,300 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
