Individual hose record
4629925 Hose Repair Specifications
Excavator · Hitachi · ZX345USLC-6N · Engine Oil Lines
Finished length1,100 mm
Locate this hose

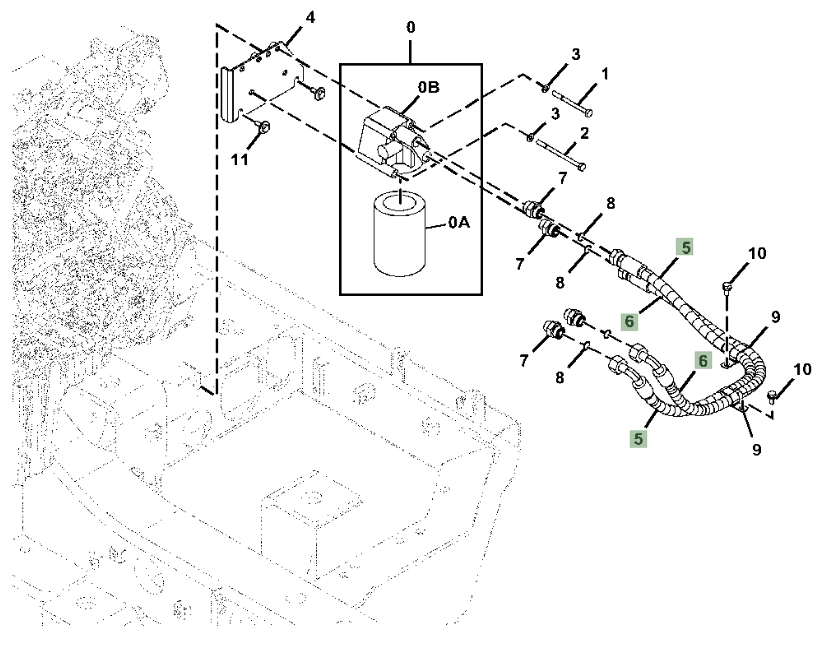

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 4629925 before removing the hose.
Repair specifications
- Part number
- 4629925
- Diagram pipe number
- 5
- Installation route
- 机油管
- Hose specification
- DN16;1SN-10;13Mpa
- Finished length
- 1,100 mm
- Working pressure
- 13 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
