Individual hose record
DS2093250 Hose Repair Specifications
Excavator · Doosan · DX140LCR-3 · Swing Motor
Finished length590 mm
Locate this hose

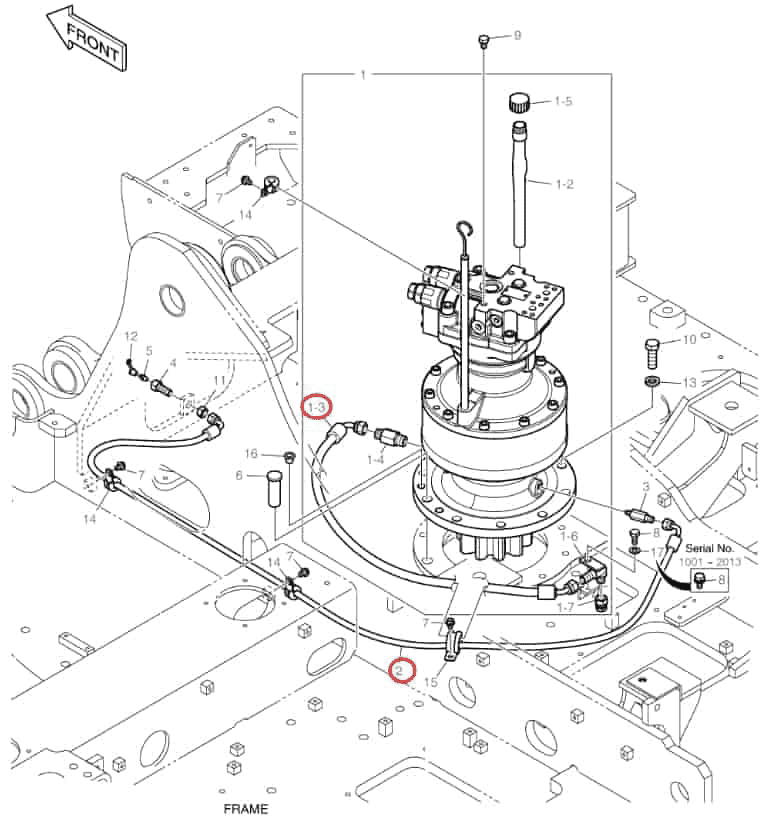

Installation diagram — Pipe No. 1-3
Locate Pipe No. 1-3 in the diagram, then confirm part number DS2093250 before removing the hose.
Repair specifications
- Part number
- DS2093250
- Diagram pipe number
- 1-3
- Installation route
- 回转马达~堵头
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 590 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
- Quantity
- 1
