Individual hose record
4648912 Hose Repair Specifications
Excavator · Hitachi · ZX310F-FE-6N · Control Lever
Finished length950 mm
Locate this hose

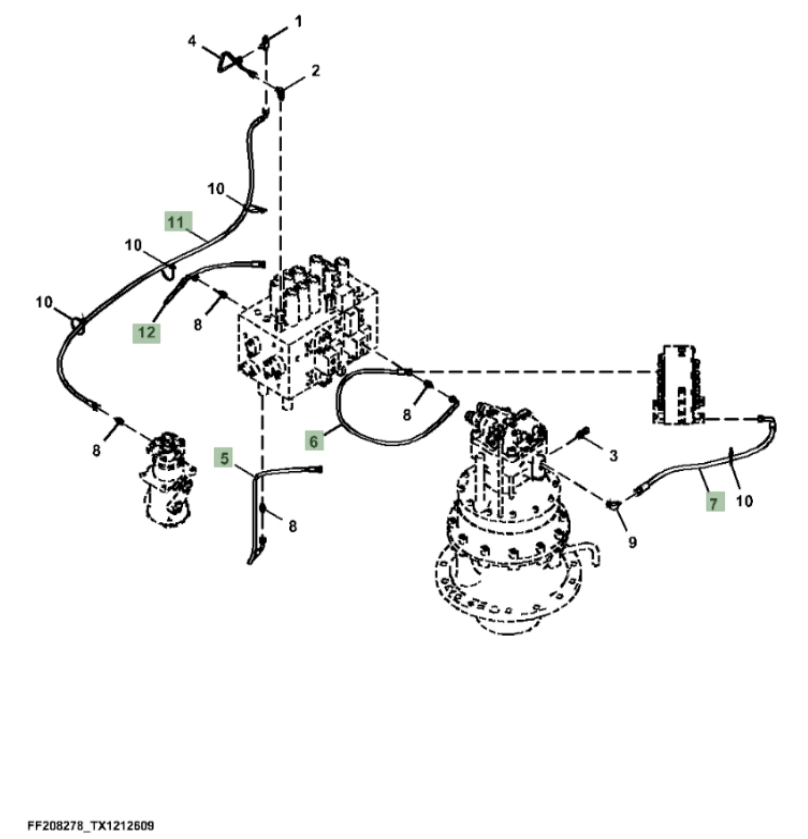

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 4648912 before removing the hose.
Repair specifications
- Part number
- 4648912
- Diagram pipe number
- 6
- Installation route
- 中转接头~分配阀左
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 950 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
