Individual hose record
4252863 Hose Repair Specifications
Excavator · Hitachi · EX160WD · Attachments – Lock Valve
Finished length1,900 mm
Locate this hose

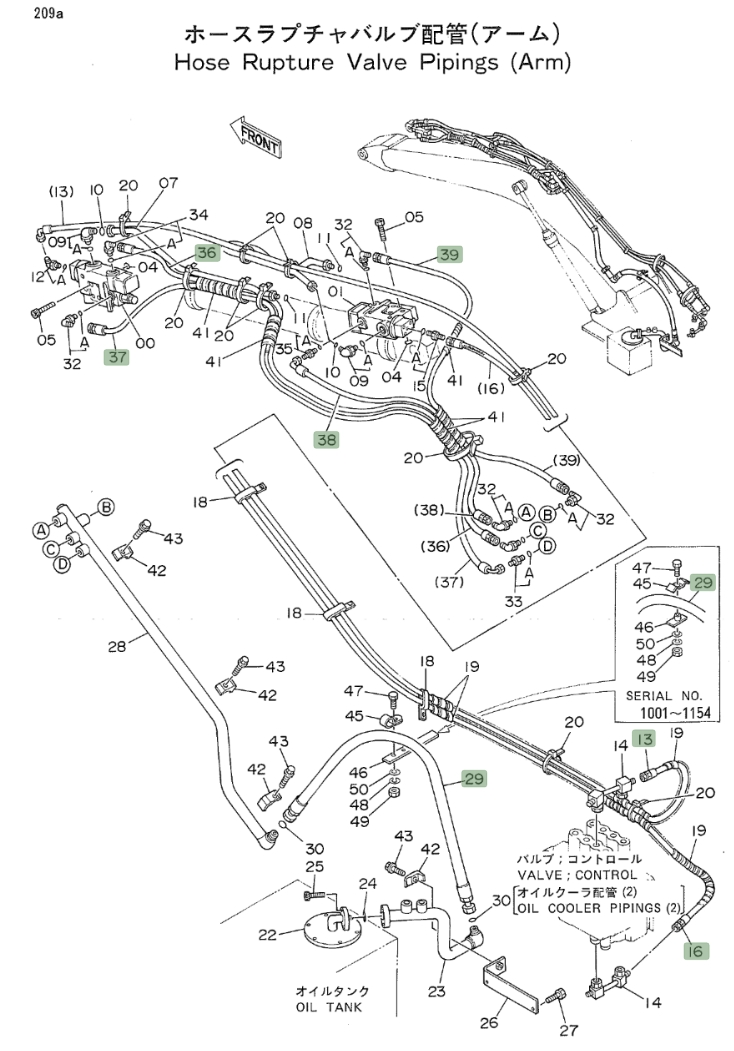

Installation diagram — Pipe No. 29
Locate Pipe No. 29 in the diagram, then confirm part number 4252863 before removing the hose.
Repair specifications
- Part number
- 4252863
- Diagram pipe number
- 29
- Installation route
- 大臂(锁止阀)~液压油箱
- Hose specification
- DN25;4层纤维-16;3.5MPa
- Finished length
- 1,900 mm
- Working pressure
- 3.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
