Individual hose record

KHJ2066 Hose Repair Specifications

Excavator · Case · CX80 · Control Valve

Finished length2,150 mm

Locate this hose

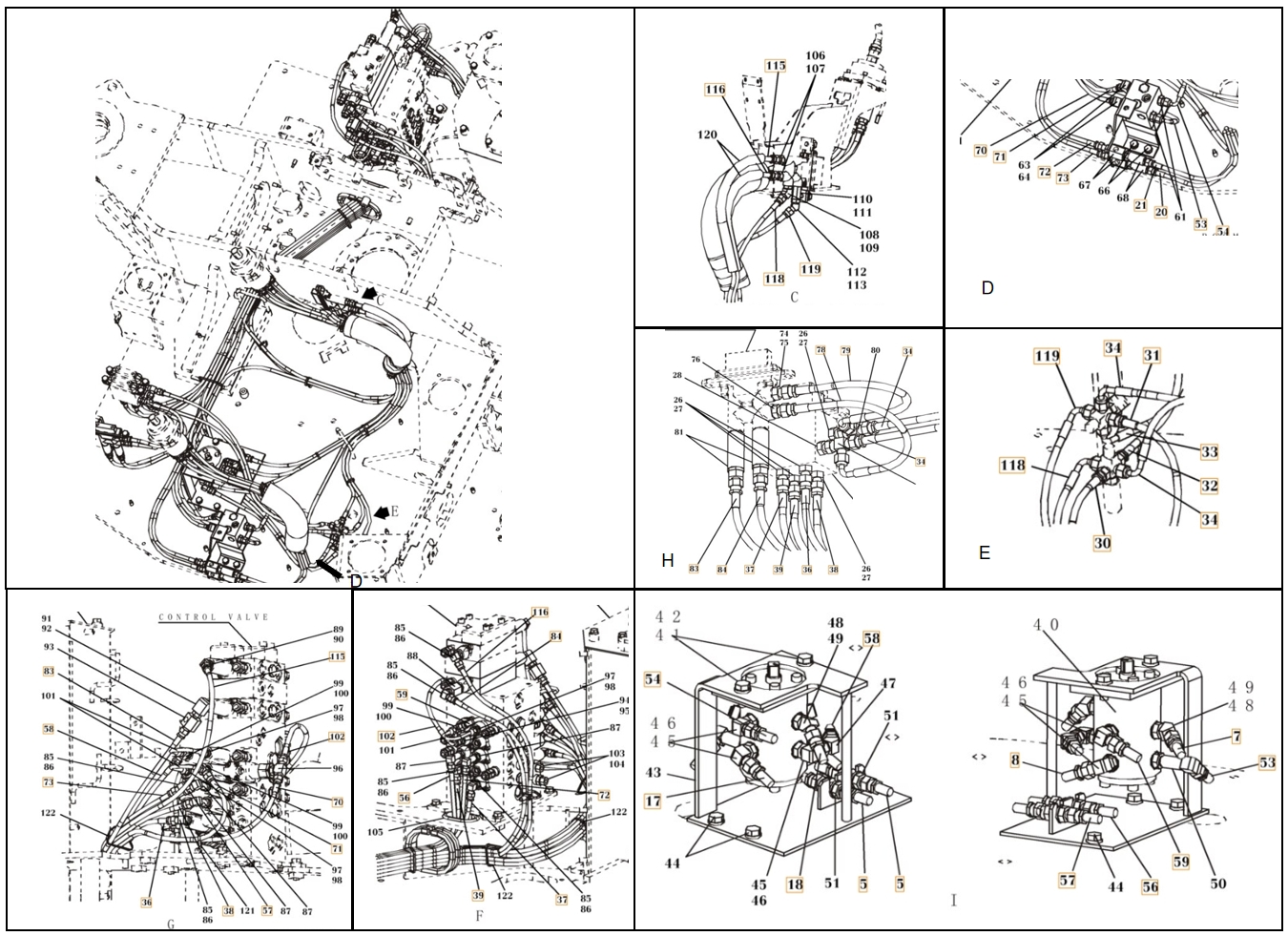

Installation diagram — Pipe No. 57

Locate Pipe No. 57 in the diagram, then confirm part number KHJ2066 before removing the hose.

Case CX80 installation diagram showing hydraulic hose KHJ2066 at Pipe No. 57 — **Case CX80**Part KHJ2066 · Pipe No. 57Open full-size diagram

Repair specifications

Part number: KHJ2066
Diagram pipe number: 57
Installation route: 分配阀右~右选择阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,150 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
