Individual hose record

KBV16090 Hose Repair Specifications

Excavator · Case · CX470C · Attachments – Breaker

Finished length2,150 mm

Locate this hose

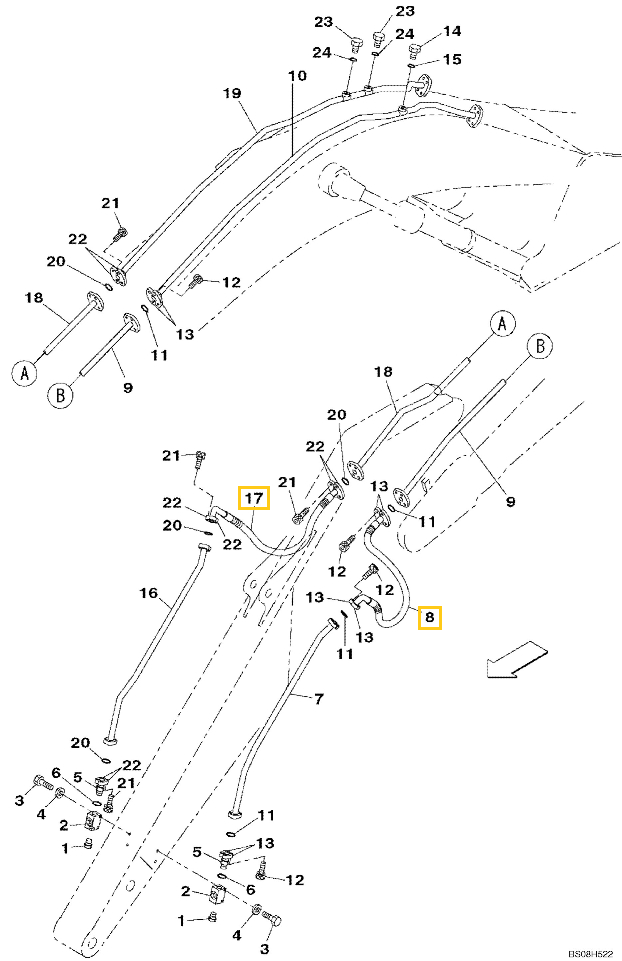

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number KBV16090 before removing the hose.

Case CX470C installation diagram showing hydraulic hose KBV16090 at Pipe No. 17 — Case CX470CPart KBV16090 · Pipe No. 17Open full-size diagram

Repair specifications

Part number: KBV16090
Diagram pipe number: 17
Installation route: 小臂破碎器截止阀右
Hose specification: DN32;6SH-20;42MPa
Finished length: 2,150 mm
Working pressure: 42 MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

KBV16090

Installation route: 小臂破碎器截止阀左

Length: 2,150 mm
Specification: DN32;6SH-20;42MPa
Left fitting: 法兰(分体式)-重型
Right fitting: 90°法兰(分体式)-重型

View full repair specifications
