Individual hose record

4451995 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-3 · Attachments

Finished length350 mm

Locate this hose

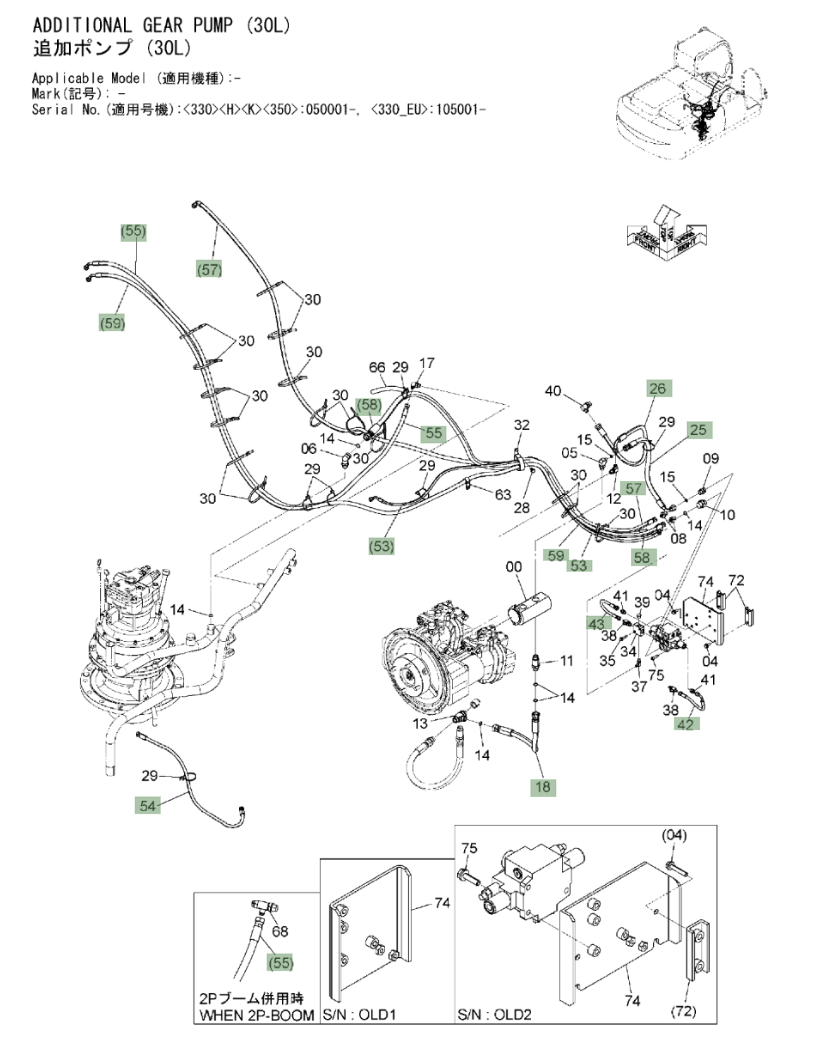

Installation diagram — Pipe No. 43

Locate Pipe No. 43 in the diagram, then confirm part number 4451995 before removing the hose.

Hitachi ZX350LC-3 installation diagram showing hydraulic hose 4451995 at Pipe No. 43 — Hitachi ZX350LC-3Part 4451995 · Pipe No. 43Open full-size diagram

Repair specifications

Part number: 4451995
Diagram pipe number: 43
Installation route: 控制阀(辅助)~过渡阀块(辅助)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 350 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5A

4669454

Installation route: 过渡阀块(辅助)~过渡阀块(流速切换)

Length: 1,800 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 19

4642723

Installation route: 中转接头~过渡阀块(分节大臂)

Length: 950 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 204

4437902

Installation route: 过渡阀块(分节大臂)~

Length: 1,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 18

4323278

Installation route: 先导泵~吸油铁管

Length: 650 mm
Specification: DN19;1SN-12;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 0

4437902

Installation route: 电磁阀~过渡阀块(流速切换)

Length: 1,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
