4654322 Hose Repair Specifications

Excavator · Hitachi · ZX350LC-5N · Boom Assembly

Finished length840 mm

Locate this hose

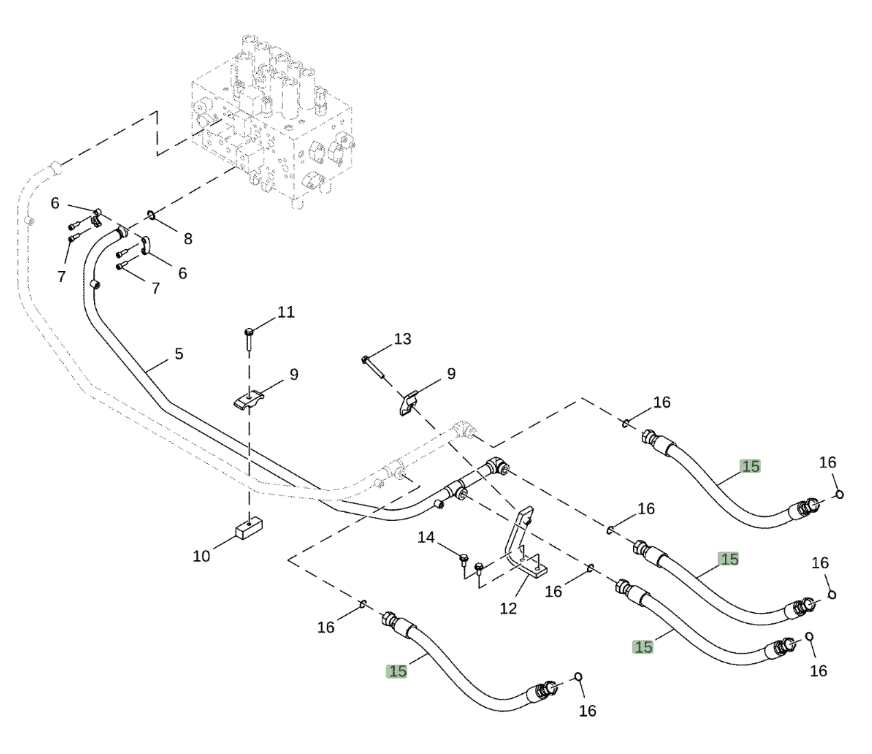

Installation diagram — Pipe No. 15

Locate Pipe No. 15 in the diagram, then confirm part number 4654322 before removing the hose.

Hitachi ZX350LC-5N installation diagram showing hydraulic hose 4654322 at Pipe No. 15 — **Hitachi ZX350LC-5N**Part 4654322 · Pipe No. 15Open full-size diagram

Repair specifications

Part number: 4654322
Diagram pipe number: 15
Installation route: 大臂油缸
Hose specification: DN25;4SH-16;38.8MPa
Finished length: 840 mm
Working pressure: 38.8 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 4
