Individual hose record
4445276 Hose Repair Specifications
Excavator · Hitachi · ZX135US-6N · Hydraulic Tank
Finished length400 mm
Locate this hose

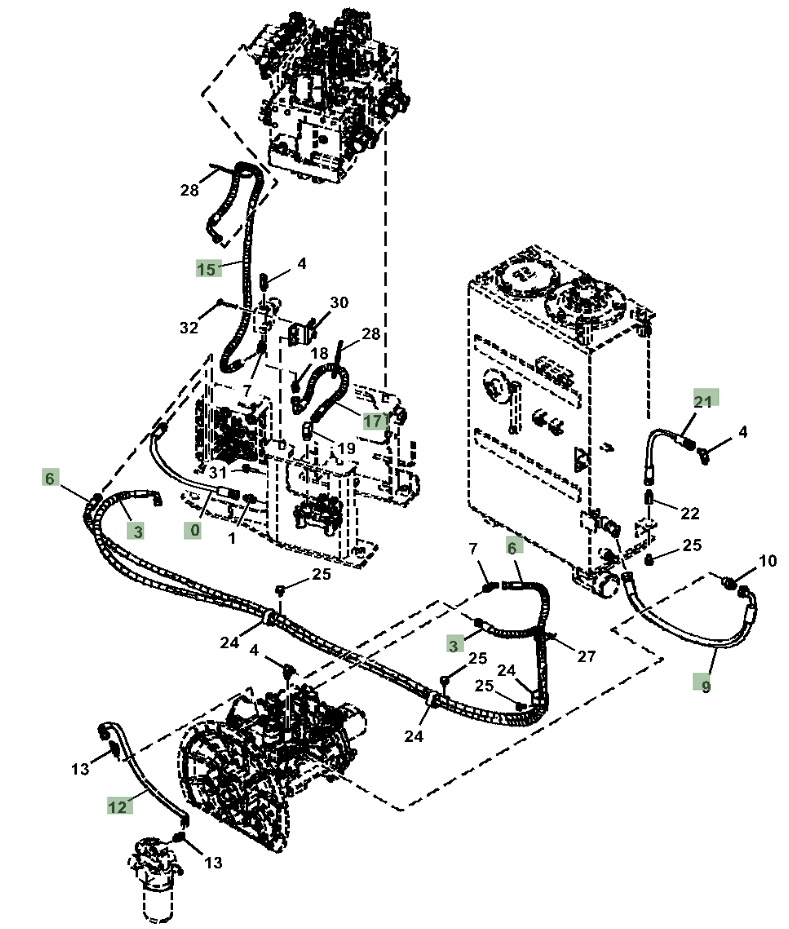

Installation diagram — Pipe No. 21
Locate Pipe No. 21 in the diagram, then confirm part number 4445276 before removing the hose.
Repair specifications
- Part number
- 4445276
- Diagram pipe number
- 21
- Installation route
- 液压油箱~
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 400 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
