Individual hose record
4295191 Hose Repair Specifications
Excavator · Hitachi · ZX470-5A · Swivel Joint
Finished length3,120 mm
Locate this hose

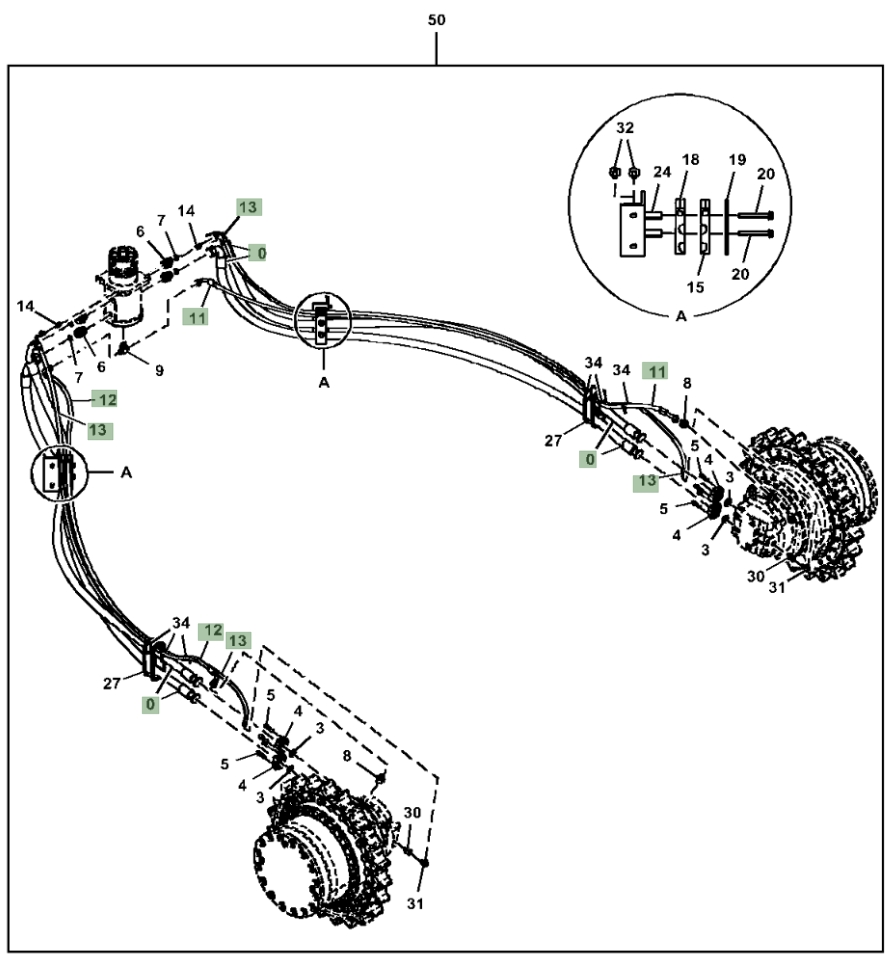

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4295191 before removing the hose.
Repair specifications
- Part number
- 4295191
- Diagram pipe number
- 13
- Installation route
- Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 3,120 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 2
