Individual hose record
4308657 Hose Repair Specifications
Excavator · Hitachi · ZX470LC-6 · Attachments
Finished length850 mm
Locate this hose

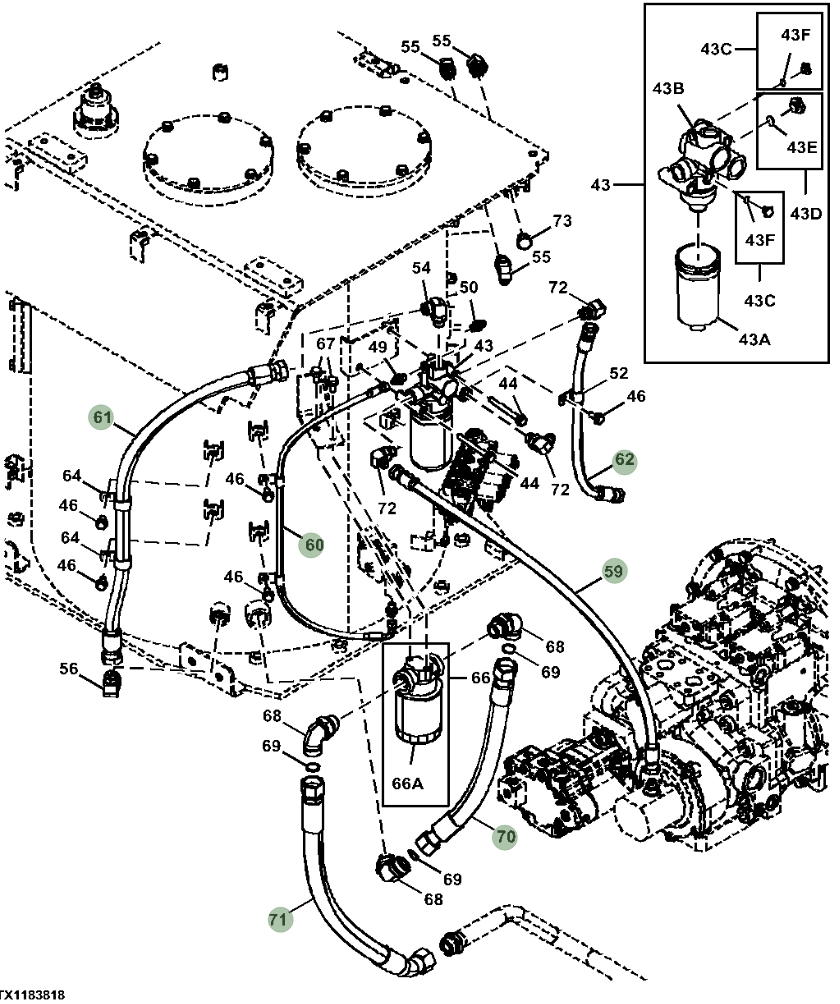

Installation diagram — Pipe No. 62
Locate Pipe No. 62 in the diagram, then confirm part number 4308657 before removing the hose.
Repair specifications
- Part number
- 4308657
- Diagram pipe number
- 62
- Installation route
- 先导滤芯~
- Hose specification
- DN13;1SN-08;16MPa
- Finished length
- 850 mm
- Working pressure
- 16 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
