Individual hose record

4678895 Hose Repair Specifications

Excavator · Hitachi · ZX245USLC-5N · Attachments – Breaker

Finished length510 mm

Locate this hose

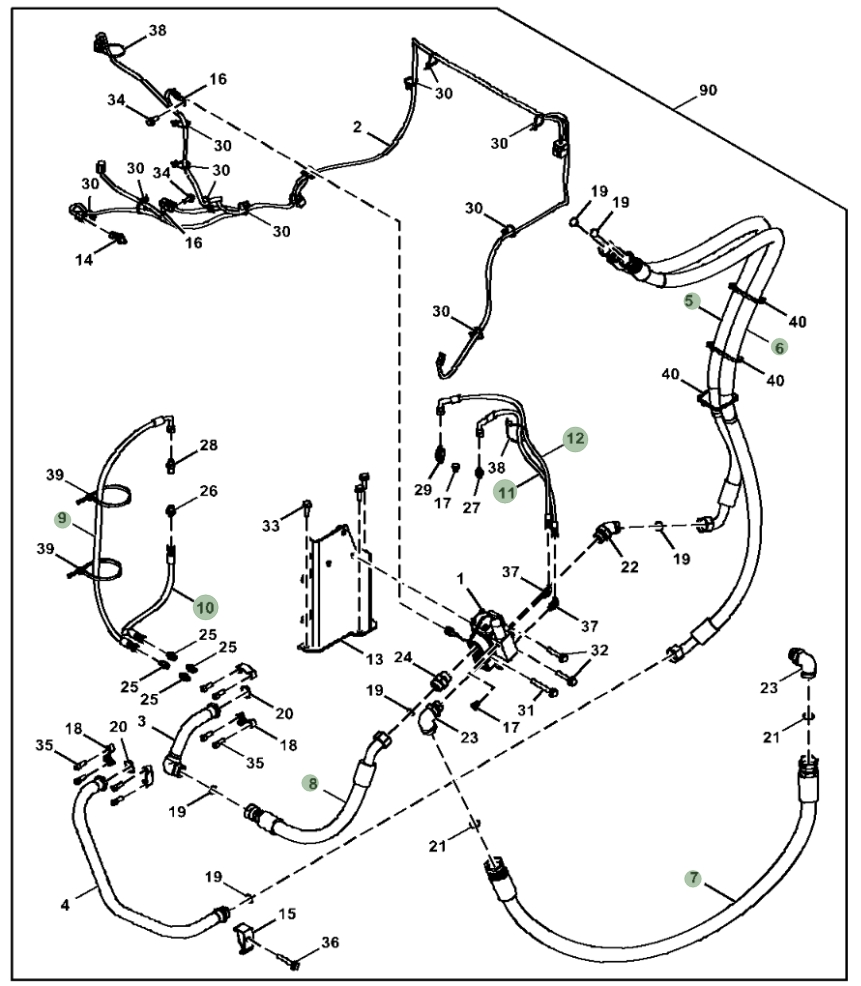

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 4678895 before removing the hose.

Hitachi ZX245USLC-5N installation diagram showing hydraulic hose 4678895 at Pipe No. 10 — Hitachi ZX245USLC-5NPart 4678895 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: 4678895
Diagram pipe number: 10
Installation route: 中转接头~分配阀下
Hose specification: DN10;1SN-6;18MPa
Finished length: 510 mm
Working pressure: 18 MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 美制内螺纹74°内锥双六角
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 1

FF531999

Installation route: 控制阀(破碎器)~过渡阀块(破碎器)

Length: 2,670 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10

4269834

Installation route: 中转接头~分配阀下

Length: 500 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications
