- Length
- 450 mm
- Specification
- DN10;1SN-06;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
9304230 Hose Repair Specifications
Excavator · Hitachi · ZX135US-5N · Swing Motor
Finished length450 mm
Locate this hose

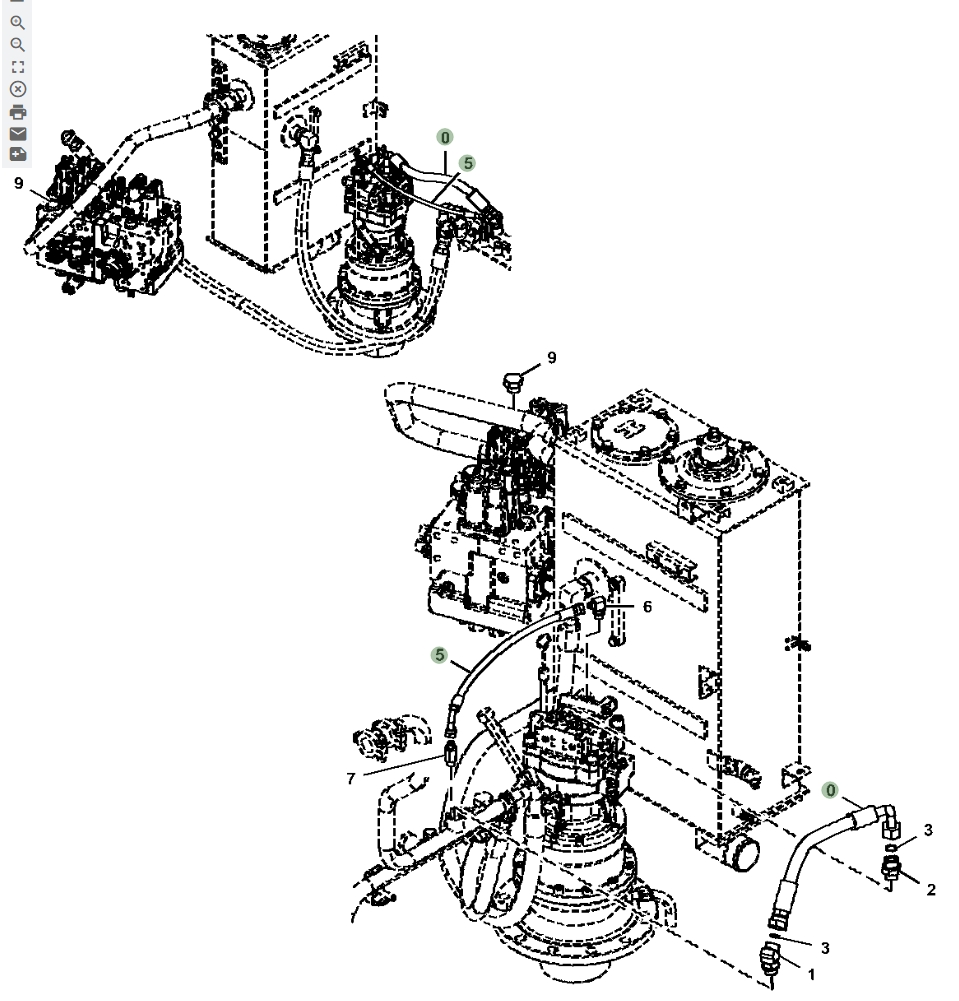

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 9304230 before removing the hose.
Repair specifications
- Part number
- 9304230
- Diagram pipe number
- 5
- Installation route
- 回转马达~回油铁管(散热器)
- Hose specification
- DN10;1SN-06;7Mpa
- Finished length
- 450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
