Individual hose record

KHJ2195 Hose Repair Specifications

Excavator · Case · CX250D LC · Hydraulic Tank

Finished length680 mm

Locate this hose

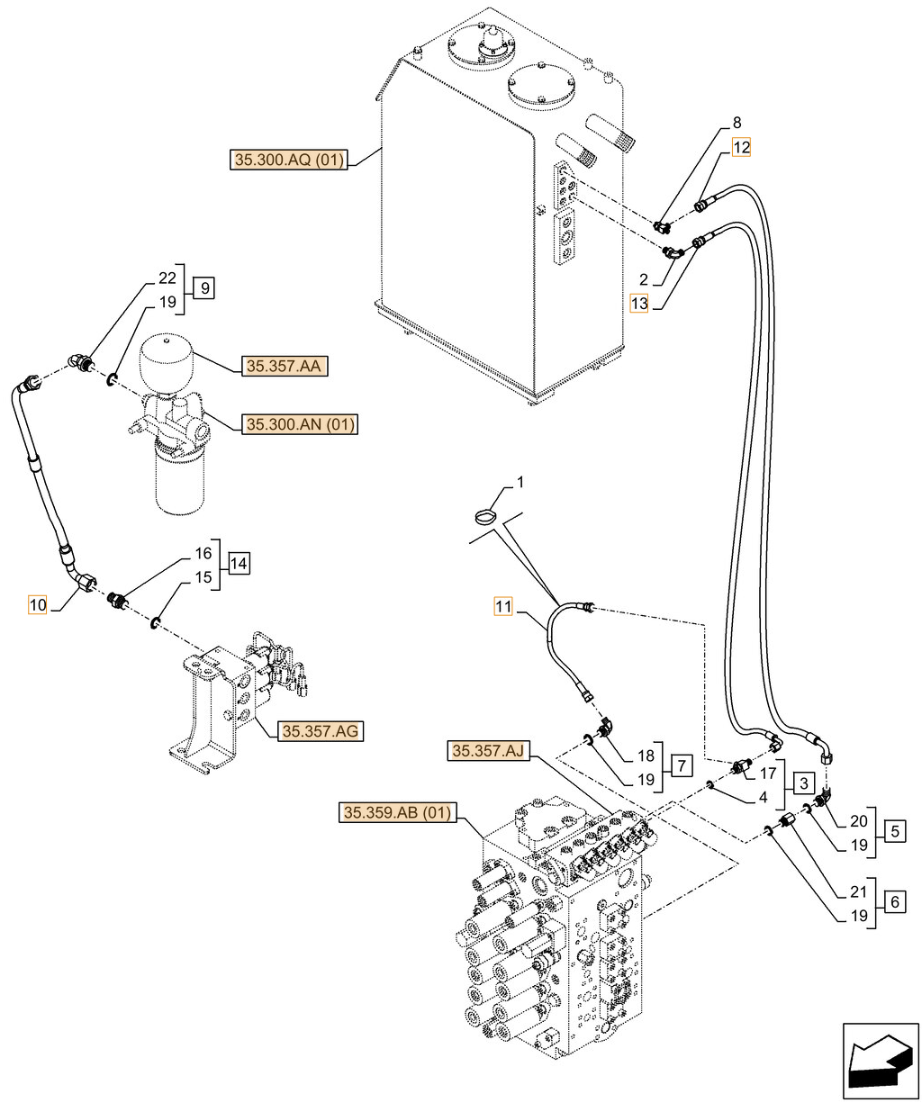

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number KHJ2195 before removing the hose.

Part number: KHJ2195
Diagram pipe number: 13
Installation route: 液压油箱~电磁阀(分配阀)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 680 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 6

Installation route: 液压油箱~回转马达

Length: 900 mm
Specification: DN13;2SN-08;27.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 10

Installation route: 液压油箱~接头(进回油阀)

Length: 2,150 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
