Individual hose record

2184-1045D111 Hose Repair Specifications

Excavator · Doosan · DX140W-3 · Grease Lines

Finished length1,570 mm

Locate this hose

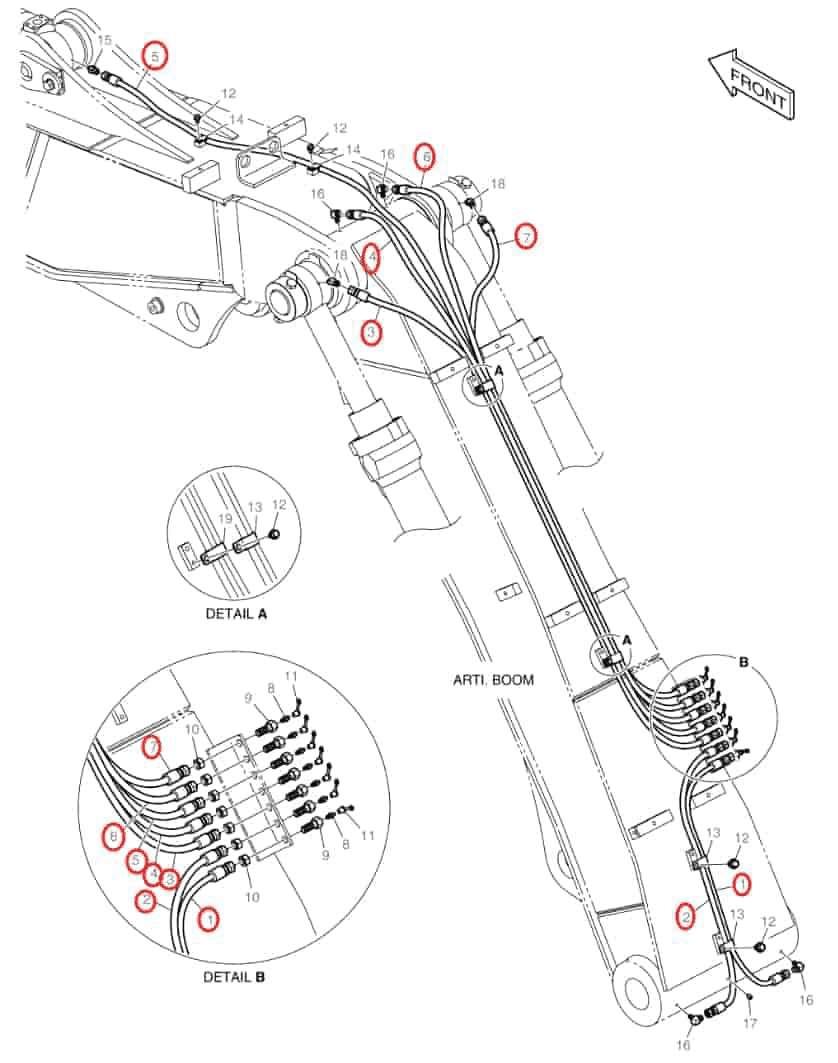

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 2184-1045D111 before removing the hose.

Doosan DX140W-3 installation diagram showing hydraulic hose 2184-1045D111 at Pipe No. 7 — **Doosan DX140W-3**Part 2184-1045D111 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 2184-1045D111
Diagram pipe number: 7
Installation route: Right boom-cylinder grease lineOriginal Chinese: 右大臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,570 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
