Individual hose record

152264A1 Hose Repair Specifications

Excavator · Case · CX700B · Control Lever

Finished length2,200 mm

Locate this hose

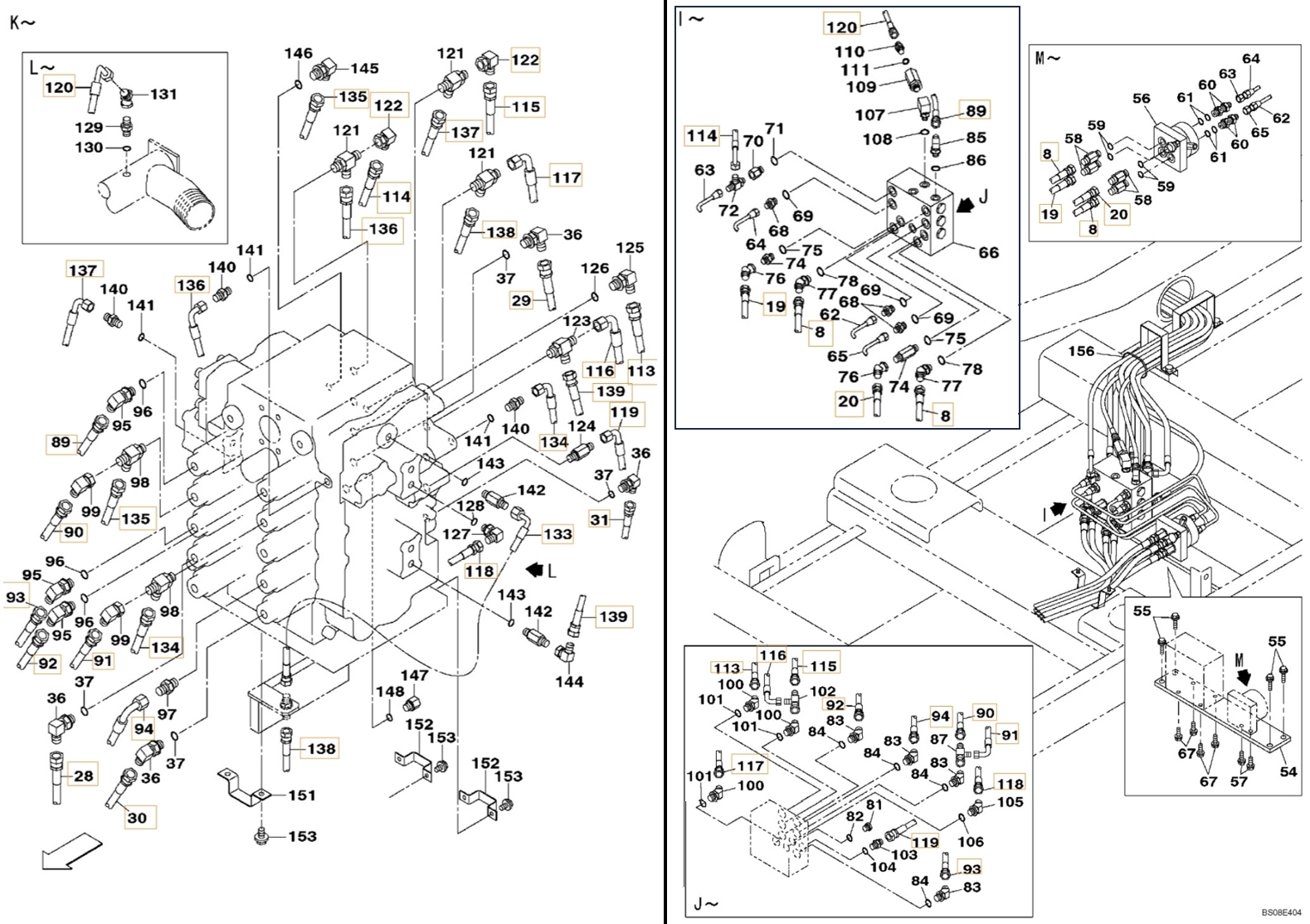

Installation diagram — Pipe No. 118

Locate Pipe No. 118 in the diagram, then confirm part number 152264A1 before removing the hose.

Case CX700B installation diagram showing hydraulic hose 152264A1 at Pipe No. 118 — **Case CX700B**Part 152264A1 · Pipe No. 118Open full-size diagram

Repair specifications

Part number: 152264A1
Diagram pipe number: 118
Installation route: 中转接头~分配阀左
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,200 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
