4332934 Hose Repair Specifications

Excavator · Hitachi · EX270LC-5 · Control Valve

Finished length400 mm

Locate this hose

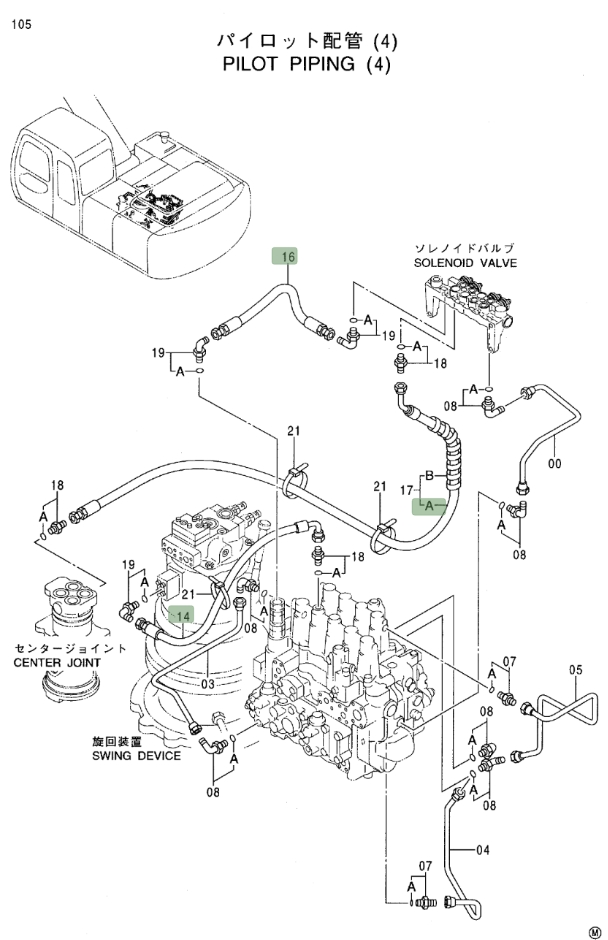

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 4332934 before removing the hose.

Hitachi EX270LC-5 installation diagram showing hydraulic hose 4332934 at Pipe No. 16 — Hitachi EX270LC-5Part 4332934 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 4332934
Diagram pipe number: 16
Installation route: 分配阀上~电磁阀
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 400 mm
Working pressure: 22.5 MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 13

4351173

Installation route: 分配阀上~液压油箱

Length: 850 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 14

4349806

Installation route: 分配阀下~液压油箱

Length: 1,450 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 41

4361042

Installation route: 分配阀后~液压油箱

Length: 1,650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
