- Length
- 3,170 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Individual hose record
DS2120036 Hose Repair Specifications
Excavator · Doosan · DX160LC-5 · Attachments
Finished length290 mm
Locate this hose

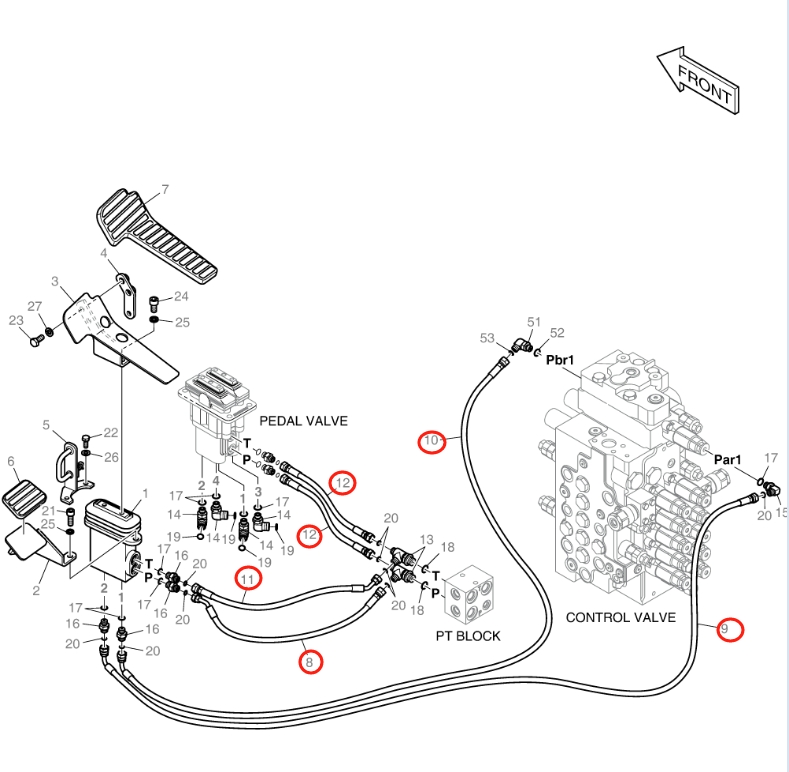

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number DS2120036 before removing the hose.
Repair specifications
- Part number
- DS2120036
- Diagram pipe number
- 8
- Installation route
- 分节油缸踏板P口~进回油阀P口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 290 mm
- Working pressure
- 22.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Quantity
- 1
