Individual hose record

KHJ11530 Hose Repair Specifications

Excavator · Case · CX240C · Solenoid Valve

Finished length1,250 mm

Locate this hose

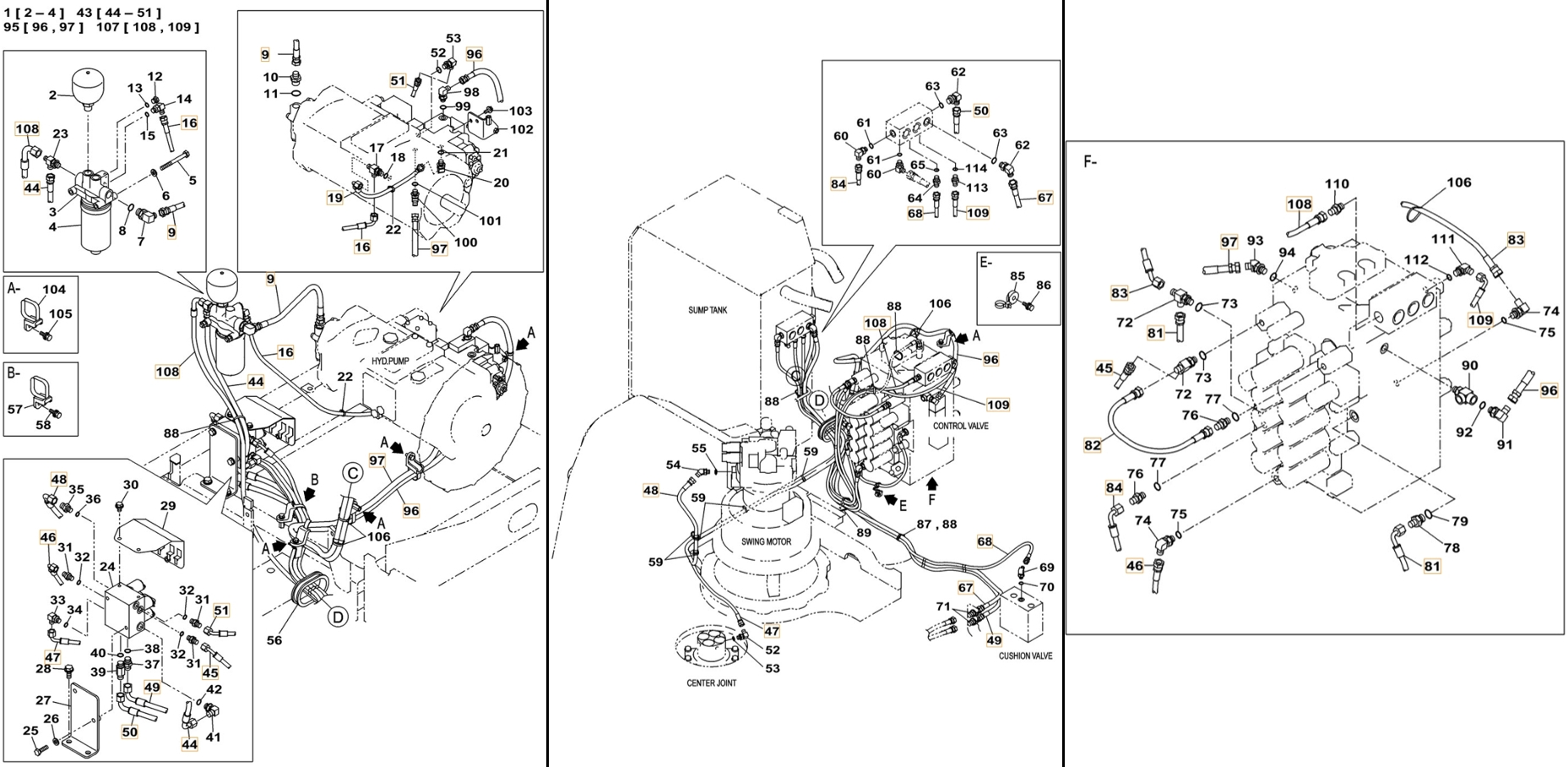

Installation diagram — Pipe No. 50

Locate Pipe No. 50 in the diagram, then confirm part number KHJ11530 before removing the hose.

Part number: KHJ11530
Diagram pipe number: 50
Installation route: 电磁阀~液压油箱过渡阀块
Hose specification: DN10;1SN-06;18MPa
Finished length: 1,250 mm
Working pressure: 18 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 49

Installation route: 电磁阀~接头(进回油阀)

Length: 2,250 mm
Specification: DN10;1SN-06;18MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 109

Installation route: 电磁阀(分配阀)~液压油箱过渡阀块
