Individual hose record
4715799 Hose Repair Specifications
Excavator · Hitachi · ZX870LC-6 · Hydraulic Tank
Finished length1,450 mm
Locate this hose

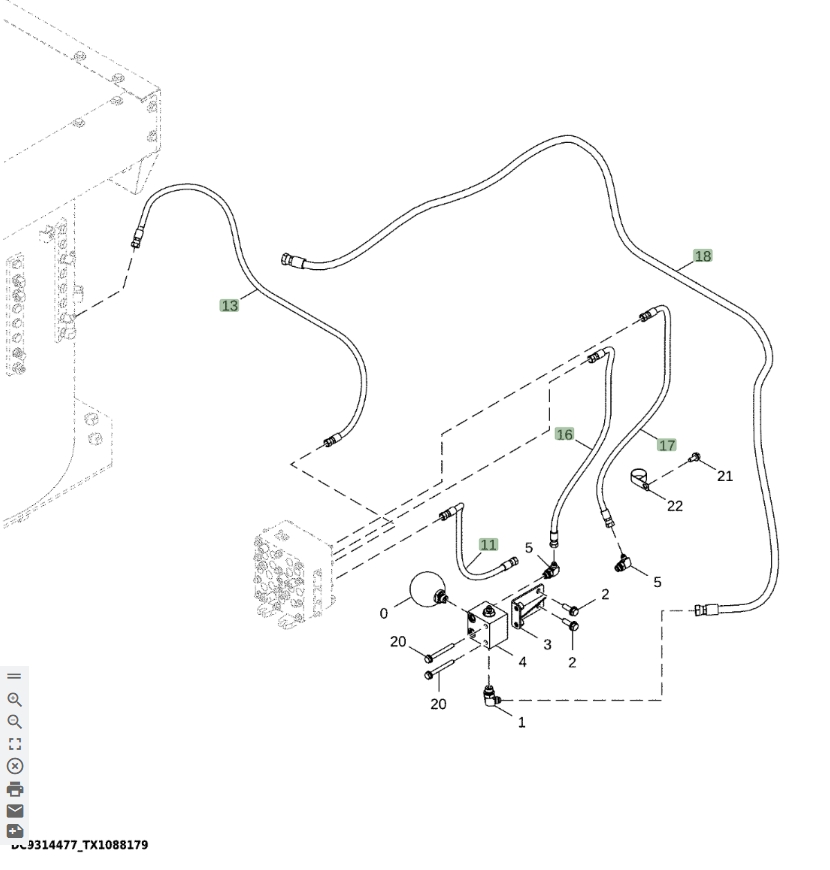

Installation diagram — Pipe No. 13
Locate Pipe No. 13 in the diagram, then confirm part number 4715799 before removing the hose.
Repair specifications
- Part number
- 4715799
- Diagram pipe number
- 13
- Installation route
- 液压油箱~中转接头
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 1,450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
