- Length
- 1,050 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
Individual hose record
730502004086 Hose Repair Specifications
Excavator · Sunward · SWE25F · Swivel Joint
Finished length1,050 mm
Locate this hose

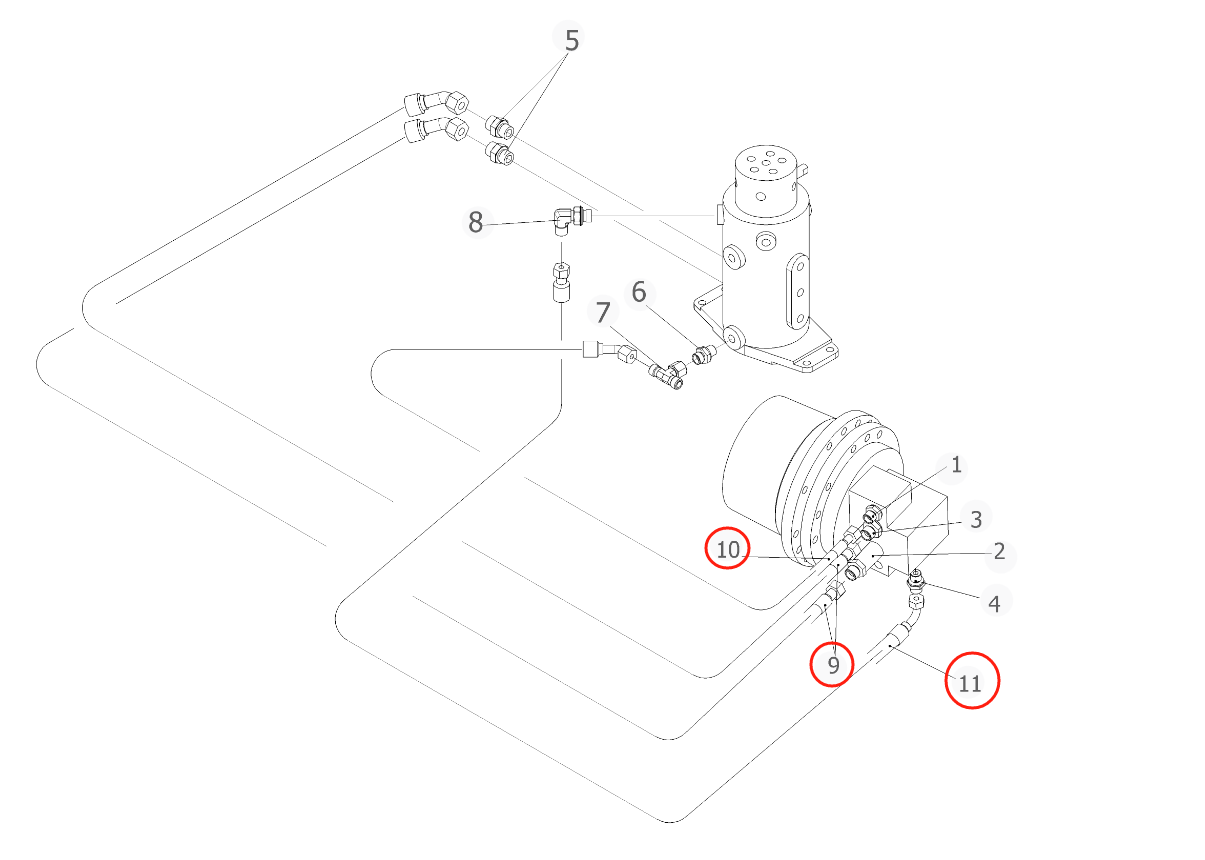

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 730502004086 before removing the hose.
Repair specifications
- Part number
- 730502004086
- Diagram pipe number
- 11
- Installation route
- 回转接头~左行走马达
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,050 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
