Individual hose record

4387816 Hose Repair Specifications

Excavator · Hitachi · ZX370 · Attachments – Quick Coupler

Finished length2,200 mm

Locate this hose

Installation diagram — Pipe No. 11A

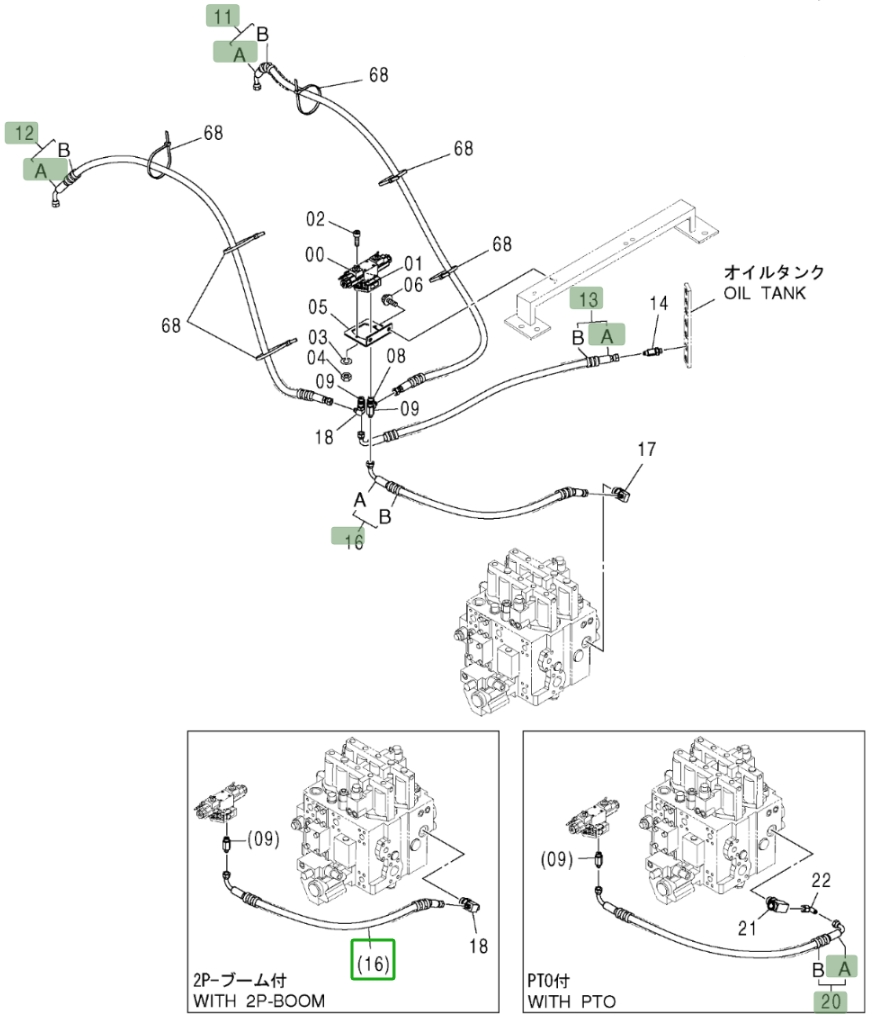

Locate Pipe No. 11A in the diagram, then confirm part number 4387816 before removing the hose.

Hitachi ZX370 installation diagram showing hydraulic hose 4387816 at Pipe No. 11A — Hitachi ZX370Part 4387816 · Pipe No. 11AOpen full-size diagram

Repair specifications

Part number: 4387816
Diagram pipe number: 11A
Installation route: 大臂(快换)~控制阀(快换)
Hose specification: DN10;2SN-6;34.5MPa
Finished length: 2,200 mm
Working pressure: 34.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 58

4437292

Installation route: 过渡阀块(快换)~过渡阀块(流速切换)

Length: 730 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 47

4452733

Installation route: 过渡阀块(快换)~过渡阀块(流速切换)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 11

9234902

Installation route: 大臂(快换)~控制阀(快换)

Length: 2,200 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 45°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 15A

4448556

Installation route: 接线板(小臂)~小臂(快换)

Length: 1,050 mm
Specification: DN10;2SN-6;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 62

4436267

Installation route: 流速切换阀~过渡阀块(快换)

Length: 420 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 31

4360873

Installation route: 分配阀液压管路

Length: 950 mm
Specification: DN10;1SN-06;18MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications
