Individual hose record

730501004542 Hose Repair Specifications

Excavator · Sunward · SWE500E-3 · Boom Assembly

Finished length1,370 mm

Locate this hose

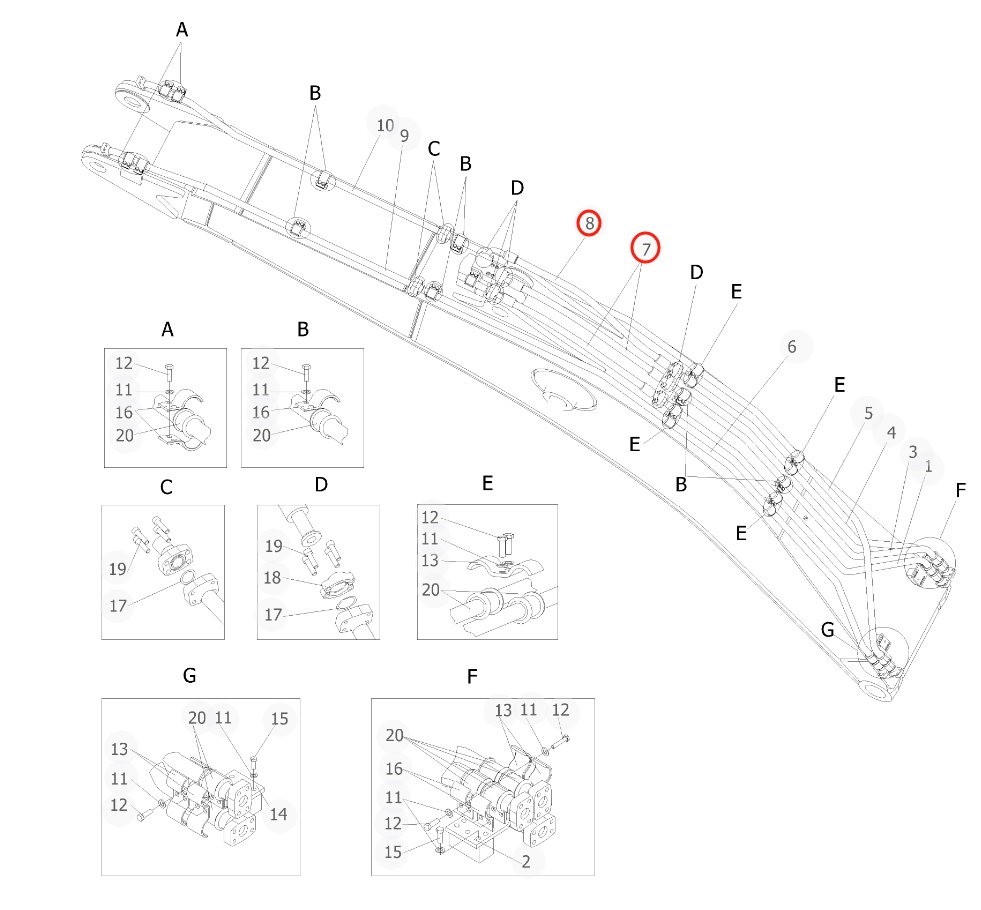

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 730501004542 before removing the hose.

Sunward SWE500E-3 installation diagram showing hydraulic hose 730501004542 at Pipe No. 7 — Sunward SWE500E-3Part 730501004542 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: 730501004542
Diagram pipe number: 7
Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左
Hose specification: DN32;6SH-20;35MPa
Finished length: 1,370 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 56

730501004886

Installation route: 大臂油缸

Length: 900 mm
Specification: DN25;6SH-16;35MPa
Left fitting: 公制内螺纹24°锥带O形圈-重型
Right fitting: 公制内螺纹24°锥带O形圈-重型

View full repair specifications

Diagram Pipe No. 8

730502007727

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 1,520 mm
Specification: DN32;6SH-20;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型

View full repair specifications

Diagram Pipe No. 7

730501004542

Installation route: 小臂油缸中

Length: 1,370 mm
Specification: DN32;6SH-20;35MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications
