4652746 Hose Repair Specifications

Excavator · Hitachi · ZX190W-6N · Attachments – Breaker

Finished length1,600 mm

Locate this hose

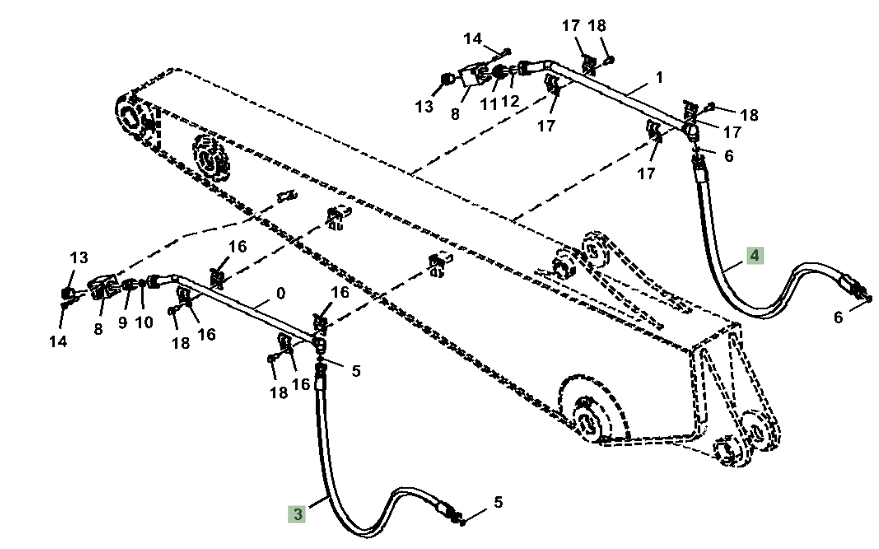

Installation diagram — Pipe No. 4

Locate Pipe No. 4 in the diagram, then confirm part number 4652746 before removing the hose.

Part number: 4652746
Diagram pipe number: 4
Installation route: 小臂破碎器截止阀右
Hose specification: DN25;4SP-16;35Mpa
Finished length: 1,600 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 20

Installation route: 大臂(前段)~大臂(后段)

Length: 1,200 mm
Specification: DN25;4SP-16;34.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 1

Installation route: 分配阀上~电磁阀(隔板)
