Individual hose record

730503001142 Hose Repair Specifications

Excavator · Sunward · SWE500E-3 · Swivel Joint

Finished length1,800 mm

Locate this hose

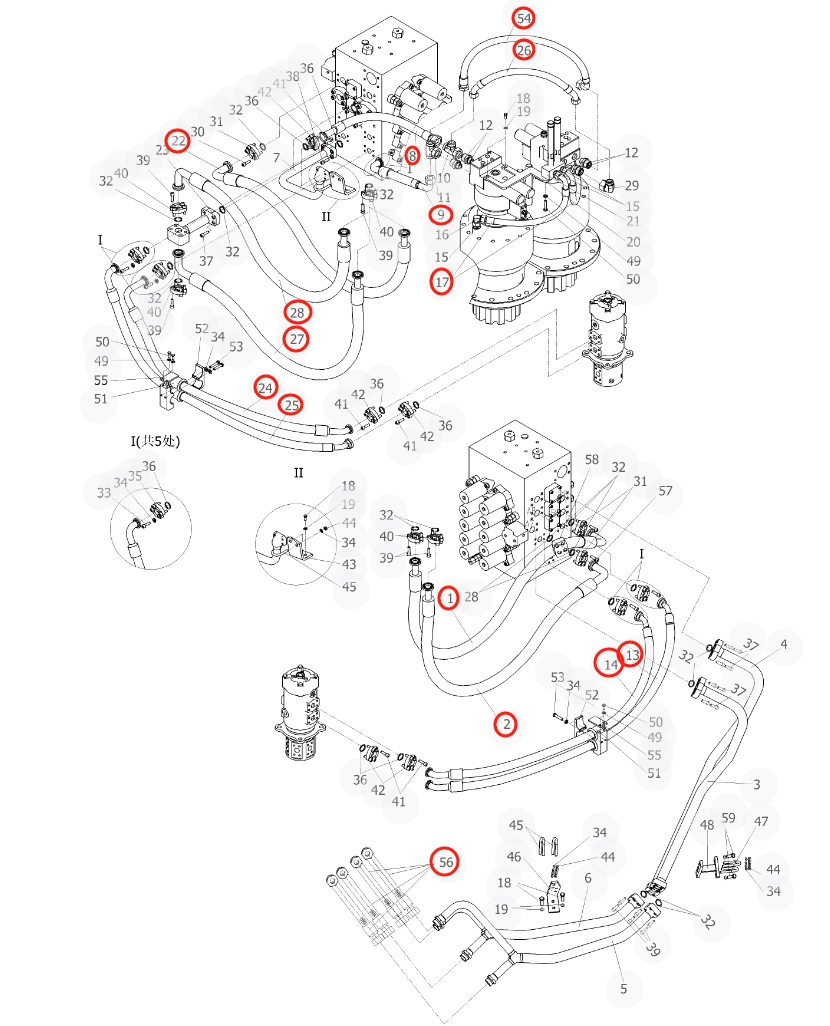

Installation diagram — Pipe No. 13

Locate Pipe No. 13 in the diagram, then confirm part number 730503001142 before removing the hose.

Sunward SWE500E-3 installation diagram showing hydraulic hose 730503001142 at Pipe No. 13 — Sunward SWE500E-3Part 730503001142 · Pipe No. 13Open full-size diagram

Repair specifications

Part number: 730503001142
Diagram pipe number: 13
Installation route: 回转接头~分配阀左
Hose specification: DN25;6SH-16;35MPa
Finished length: 1,800 mm
Working pressure: 35 MPa
Left fitting: 45°法兰-轻型
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 24

730503001144

Installation route: 回转接头~分配阀右

Length: 1,580 mm
Specification: DN25;6SH-16;35MPa
Left fitting: 45°法兰-轻型
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

View full repair specifications

Diagram Pipe No. 14

730503001143

Installation route: 回转接头~分配阀左

Length: 1,640 mm
Specification: DN25;6SH-16;35MPa
Left fitting: 45°法兰-轻型
Right fitting: 45° heavy-series flangeOriginal Chinese: 45°法兰-重型

View full repair specifications
