Individual hose record
730502009585 Hose Repair Specifications
Excavator · Sunward · SWE150E · Pedal
Finished length780 mm
Locate this hose

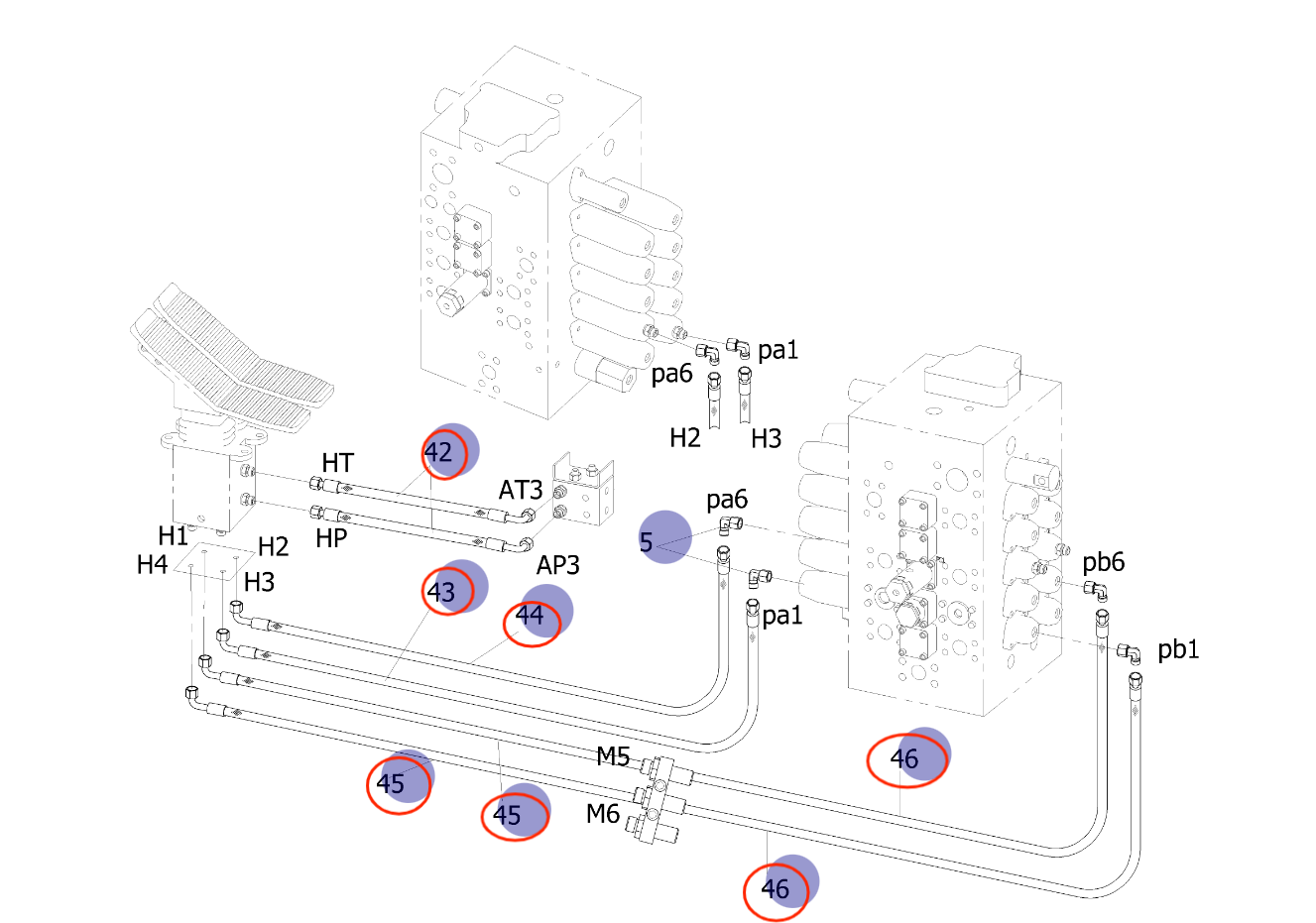

Installation diagram — Pipe No. 46
Locate Pipe No. 46 in the diagram, then confirm part number 730502009585 before removing the hose.
Repair specifications
- Part number
- 730502009585
- Diagram pipe number
- 46
- Installation route
- 行走踏板H1~分配阀后PB6
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 780 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 90°公制内螺纹24°锥带O形圈-轻型
- Quantity
- 1
