Individual hose record
152761A1 Hose Repair Specifications
Excavator · Case · CX460 · Supply and Return Valve
Finished length1,450 mm
Locate this hose

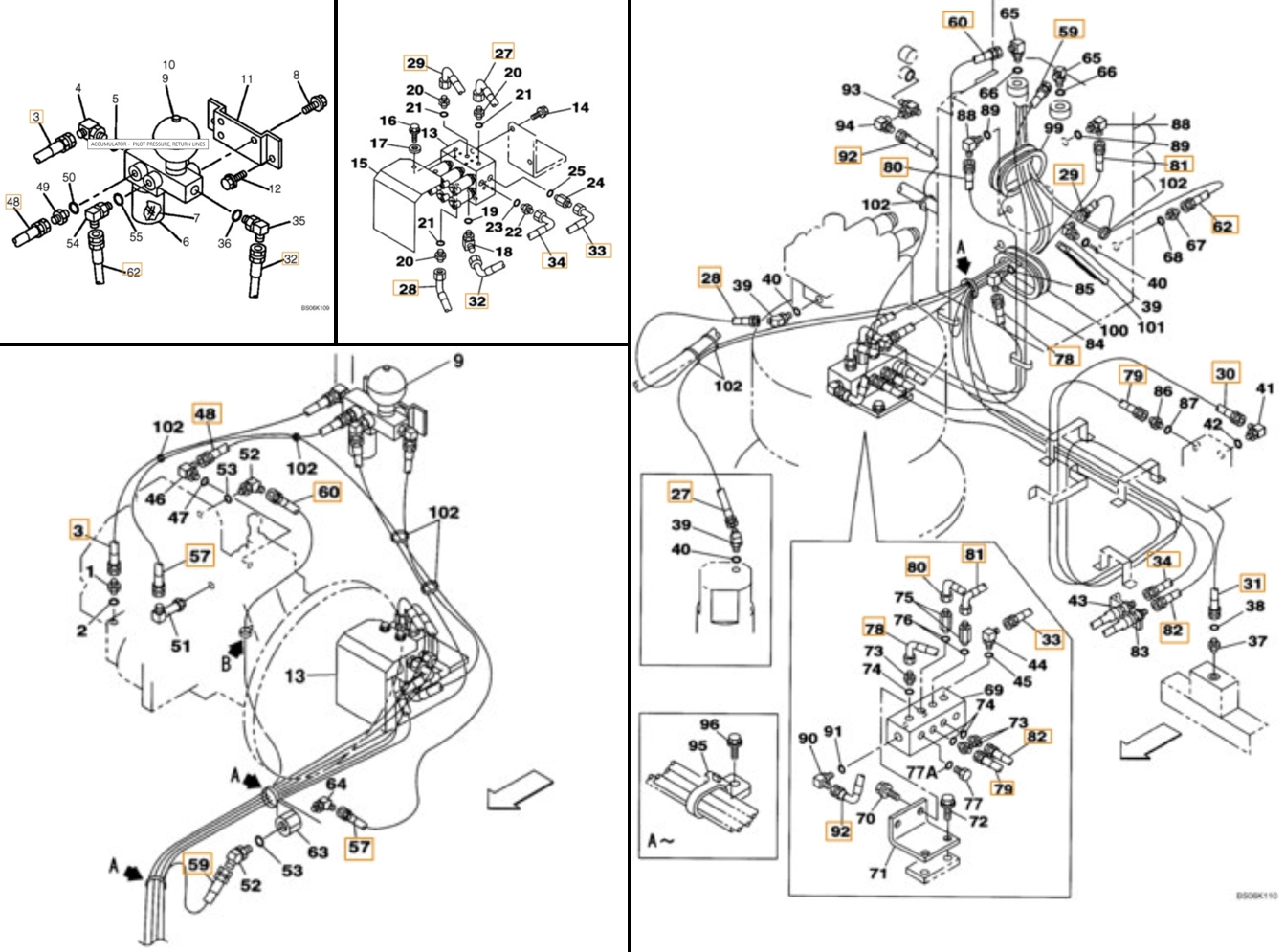

Installation diagram — Pipe No. 82
Locate Pipe No. 82 in the diagram, then confirm part number 152761A1 before removing the hose.
Repair specifications
- Part number
- 152761A1
- Diagram pipe number
- 82
- Installation route
- 接头(进回油阀)~回转马达过渡阀块
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,450 mm
- Working pressure
- 18 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Quantity
- 1
