Individual hose record
4456556 Hose Repair Specifications
Excavator · Hitachi · ZX130-5N · Attachments
Finished length1,750 mm
Locate this hose

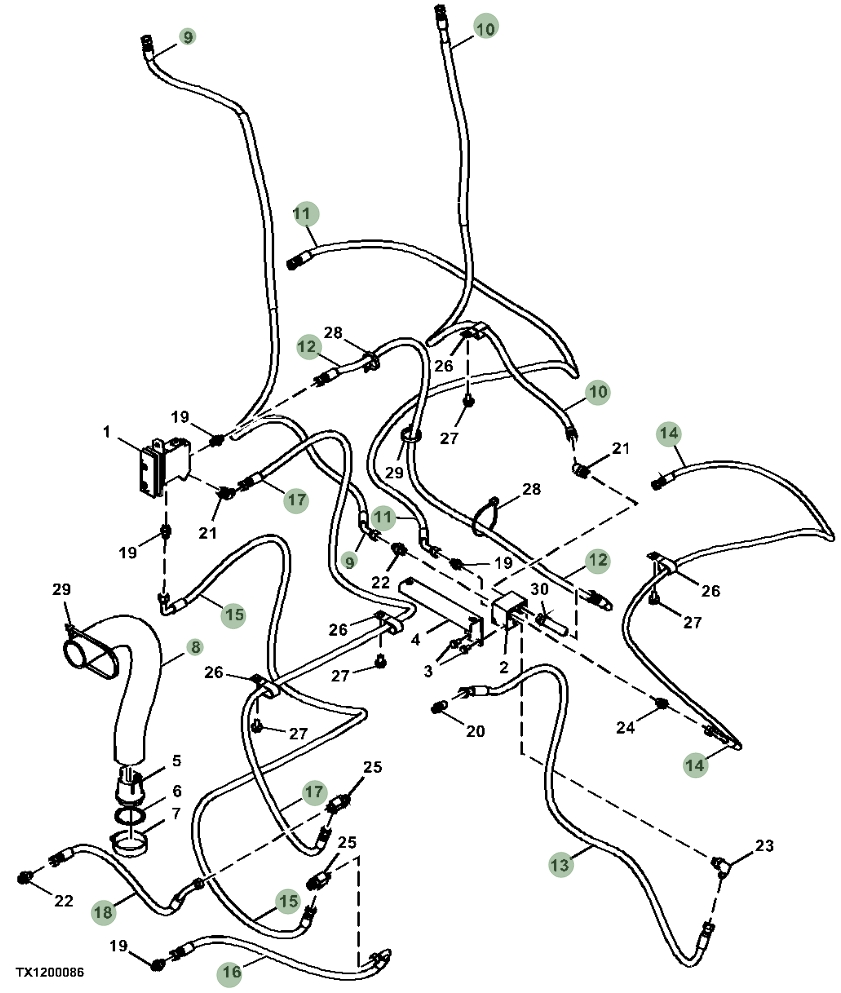

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 4456556 before removing the hose.
Repair specifications
- Part number
- 4456556
- Diagram pipe number
- 10
- Installation route
- 过渡阀块(推土铲手柄)~
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 1,750 mm
- Working pressure
- 18 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 美制内螺纹74°内锥
- Quantity
- 1
