Individual hose record
4218037 Hose Repair Specifications
Excavator · Hitachi · EX700 · Control Lever
Finished length3,000 mm
Locate this hose

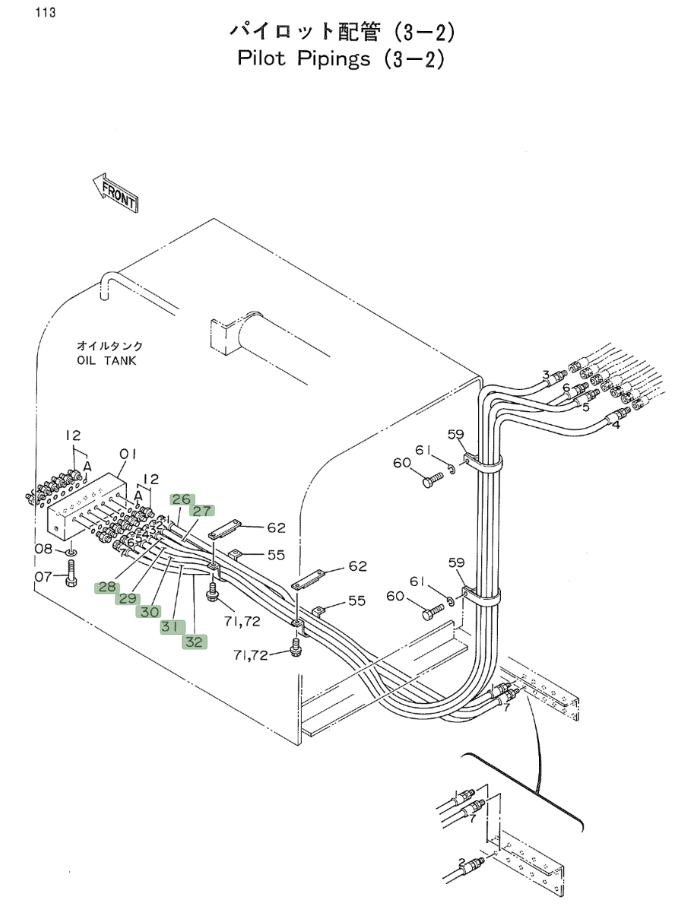

Installation diagram — Pipe No. 28
Locate Pipe No. 28 in the diagram, then confirm part number 4218037 before removing the hose.
Repair specifications
- Part number
- 4218037
- Diagram pipe number
- 28
- Installation route
- 中转接头~接线板(中转接头)
- Hose specification
- DN10;1层纤维-6;14MPa
- Finished length
- 3,000 mm
- Working pressure
- 14 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制外螺纹37°外锥
- Quantity
- 1
