Diagram Pipe No. 12A
4436267
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 420 mm
- Specification
- DN10;1SN-6;7Mpa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
Individual hose record
4436269 Hose Repair Specifications
Excavator · Hitachi · ZX135US · Attachments – Lock Valve
Finished length350 mm
Locate this hose

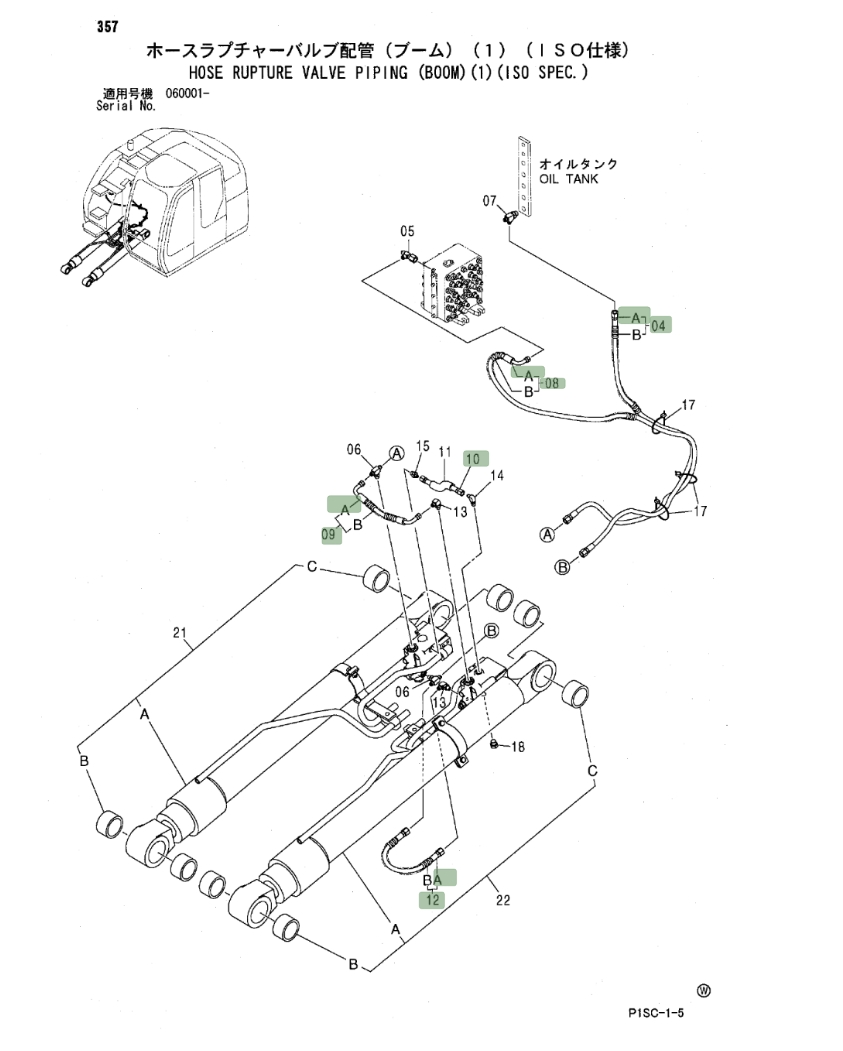

Installation diagram — Pipe No. 9A
Locate Pipe No. 9A in the diagram, then confirm part number 4436269 before removing the hose.
Repair specifications
- Part number
- 4436269
- Diagram pipe number
- 9A
- Installation route
- Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Hose specification
- DN10;1SN-06;18MPa
- Finished length
- 350 mm
- Working pressure
- 18 MPa
- Left fitting
- 90°美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
