Individual hose record

KAJ3243 Hose Repair Specifications

Excavator · Case · CX700 · Attachments – Breaker

Finished length2,450 mm

Locate this hose

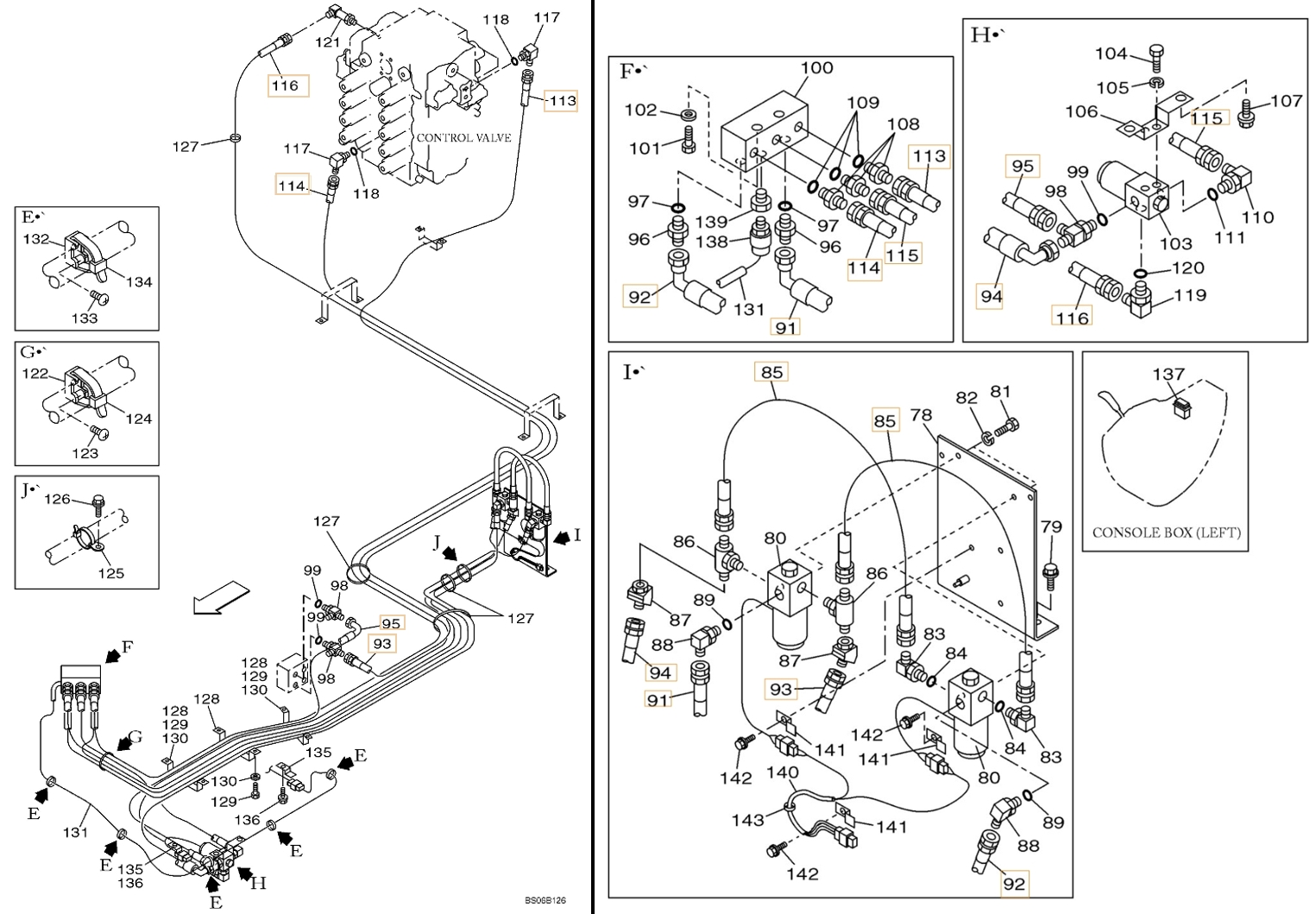

Installation diagram — Pipe No. 94

Locate Pipe No. 94 in the diagram, then confirm part number KAJ3243 before removing the hose.

Part number: KAJ3243
Diagram pipe number: 94
Installation route: 电磁阀(破碎器踏板)~电磁阀(破碎器)
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 2,450 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 92

Installation route: 电磁阀(破碎器)~压力开关阀(破碎器踏板)

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 95

Installation route: 电磁阀(破碎器踏板)~进回油阀

Length: 850 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 115

Installation route: 电磁阀(破碎器踏板)~压力开关阀(破碎器踏板)

Length: 650 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 74

Installation route: 电磁阀(破碎器)~压力开关阀(破碎器踏板)

Length: 2,500 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
