4311183 Hose Repair Specifications

Excavator · Hitachi · EX200LC-3 · Attachments – Breaker

Finished length1,130 mm

Locate this hose

Installation diagram — Pipe No. 36

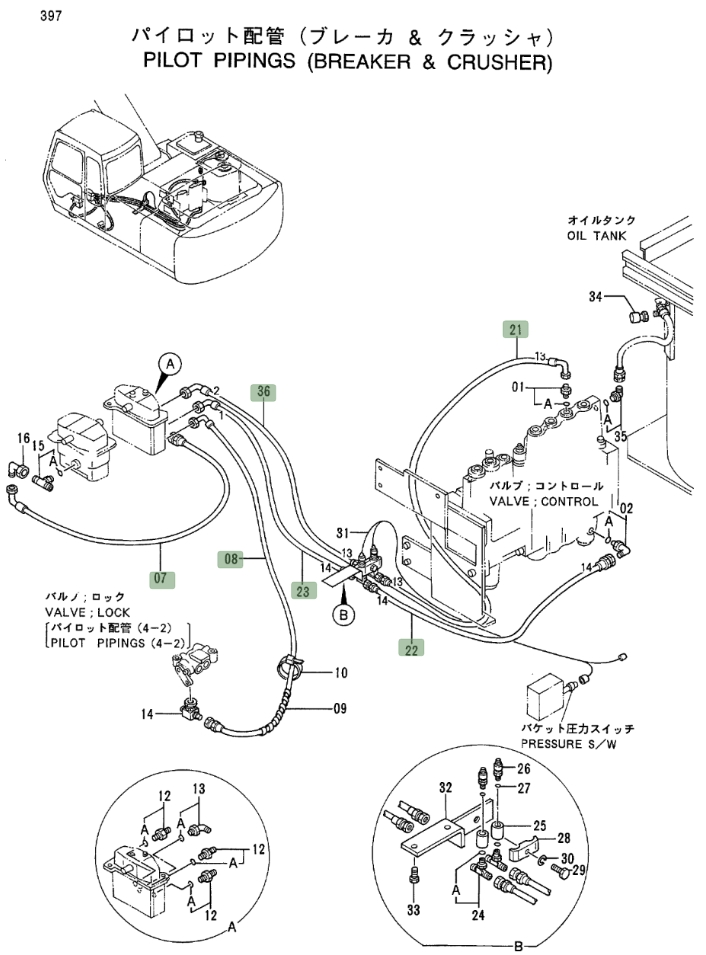

Locate Pipe No. 36 in the diagram, then confirm part number 4311183 before removing the hose.

Hitachi EX200LC-3 installation diagram showing hydraulic hose 4311183 at Pipe No. 36 — Hitachi EX200LC-3Part 4311183 · Pipe No. 36Open full-size diagram

Repair specifications

Part number: 4311183
Diagram pipe number: 36
Installation route: 破碎器踏板~接线板(踏板)
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,130 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1
