Individual hose record

150963A1 Hose Repair Specifications

Excavator · Case · CX130C-8 · Swivel Joint

Finished length1,650 mm

Locate this hose

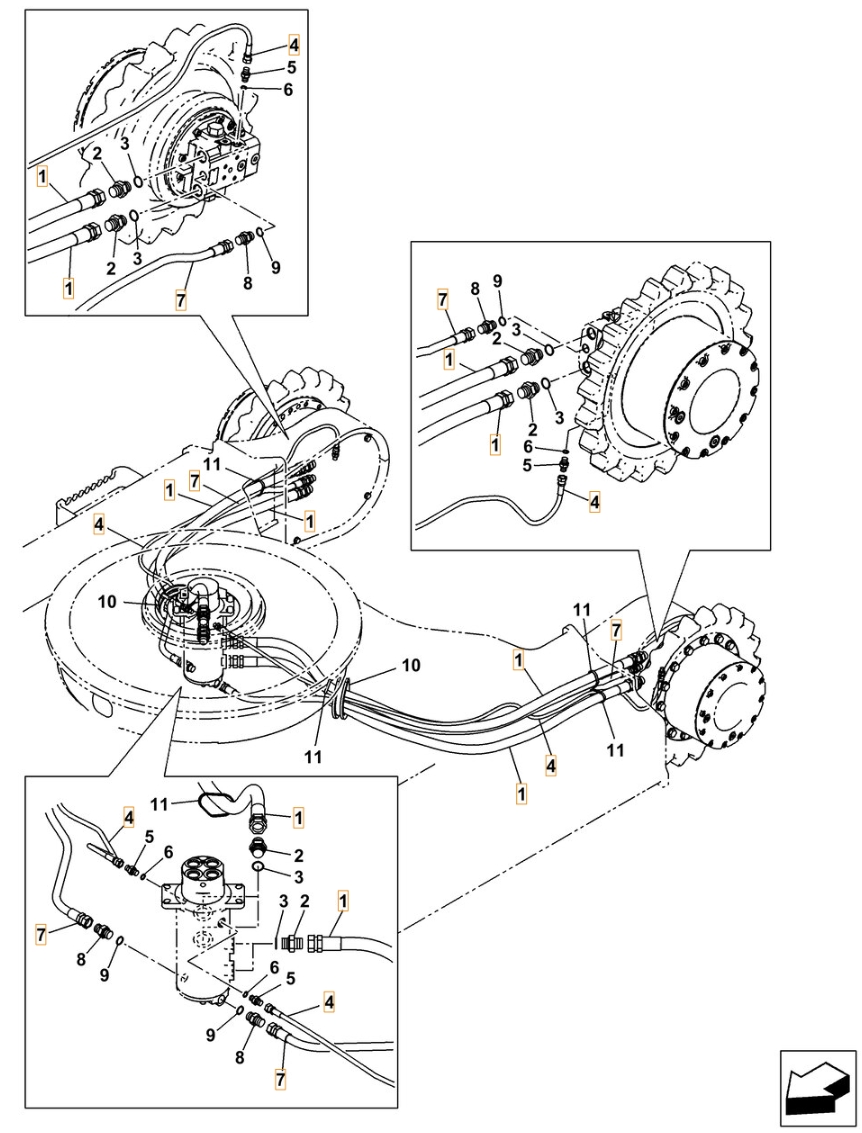

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number 150963A1 before removing the hose.

Part number: 150963A1
Diagram pipe number: 7
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
Hose specification: DN13;1SN-08;16MPa
Finished length: 1,650 mm
Working pressure: 16 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 2

Same system

Diagram Pipe No. 4

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 2,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 1

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length: 1,680 mm
Specification: DN19;4SH-12;42.0MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
