Individual hose record

FF532286 Hose Repair Specifications

Excavator · Hitachi · ZX250LC-6N · Hydraulic Pump

Finished length3,630 mm

Locate this hose

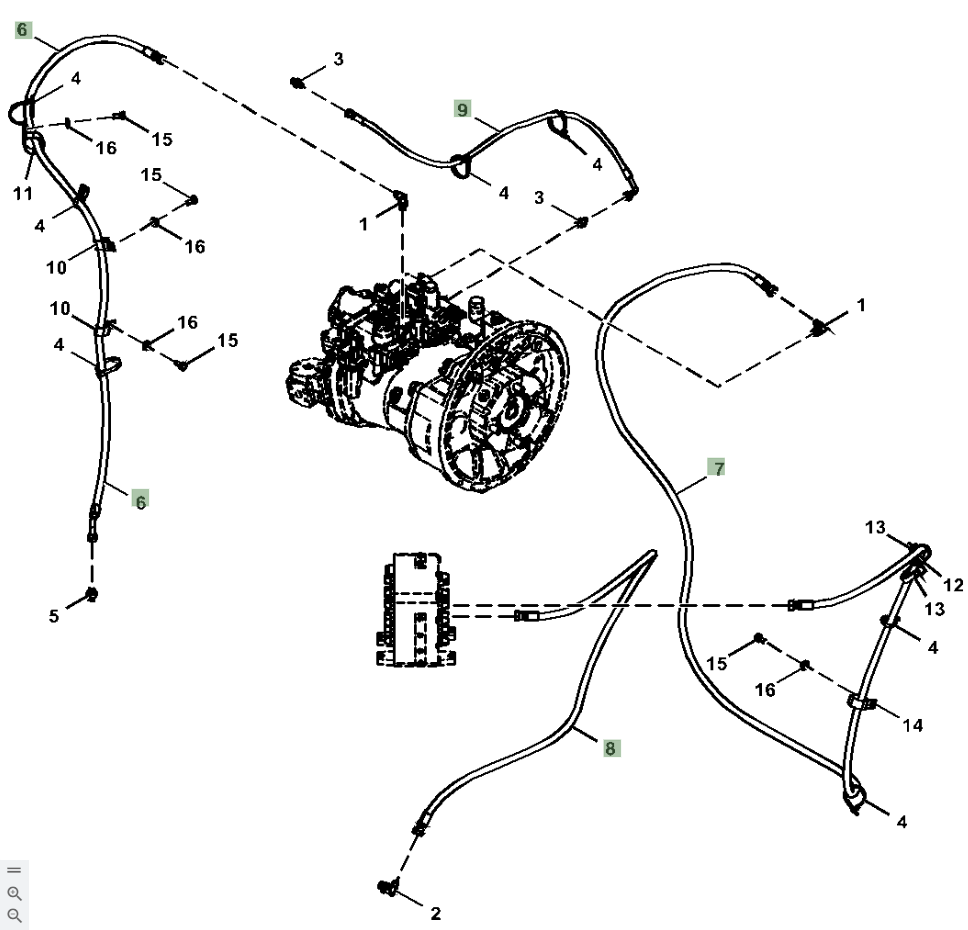

Installation diagram — Pipe No. 7

Locate Pipe No. 7 in the diagram, then confirm part number FF532286 before removing the hose.

Hitachi ZX250LC-6N installation diagram showing hydraulic hose FF532286 at Pipe No. 7 — Hitachi ZX250LC-6NPart FF532286 · Pipe No. 7Open full-size diagram

Repair specifications

Part number: FF532286
Diagram pipe number: 7
Installation route: 液压泵~中转接头
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,630 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

FF532281

Installation route: 液压泵~中转接头

Length: 1,490 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 22

4304470

Installation route: 液压泵~先导滤芯

Length: 1,250 mm
Specification: DN12;1SN-08;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 6

4715840

Installation route: 液压泵~电磁阀(液压泵)

Length: 1,900 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 9

4644625

Installation route: 液压泵~回油铁管

Length: 680 mm
Specification: DN19;2SN-12;21.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications
