Individual hose record

DS20121201 Hose Repair Specifications

Excavator · Doosan · DX62R-3 · Control Valve

Finished length630 mm

Locate this hose

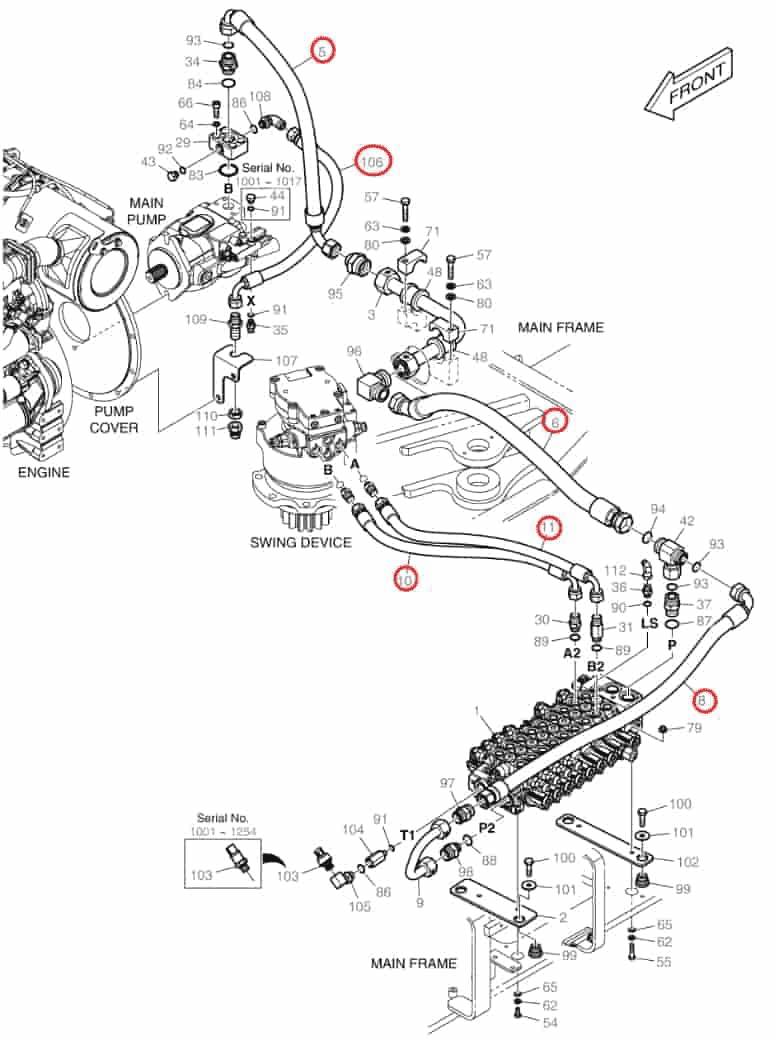

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number DS20121201 before removing the hose.

Part number: DS20121201
Diagram pipe number: 6
Installation route: 分配阀P口~铁管(分配阀旁)
Hose specification: DN25;4SH-16;38.8MPa
Finished length: 630 mm
Working pressure: 38.8 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 45°美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 11

Installation route: 分配阀B2口~回转马达A口

Length: 660 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 7

Installation route: 分配阀B1口~控制阀B口

Length: 620 mm
Specification: DN6;2SN-04;40MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 27

Installation route: 分配阀PB7口~电控液压动力转向阀B口

Length: 1,730 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥

Diagram Pipe No. 10

Installation route: 分配阀A2口~回转马达B口

Length: 620 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥

Diagram Pipe No. 6

Installation route: 分配阀A1口~控制阀A口

Length: 560 mm
Specification: DN6;2SN-04;40MPa
Left fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 分配阀A7口~开关阀A口

Length: 650 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
