- Length
- 1,100 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
Individual hose record
9190861 Hose Repair Specifications
Excavator · Hitachi · ZX650LC-3 · Solenoid Valve
Finished length1,100 mm
Locate this hose

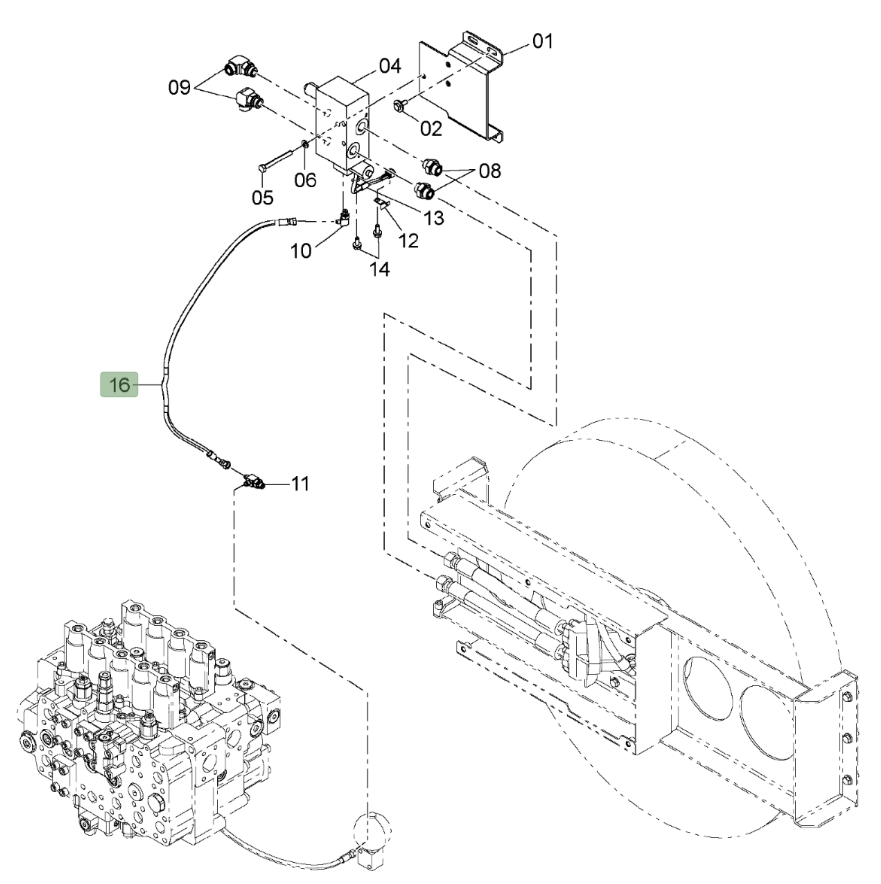

Installation diagram — Pipe No. 16
Locate Pipe No. 16 in the diagram, then confirm part number 9190861 before removing the hose.
Repair specifications
- Part number
- 9190861
- Diagram pipe number
- 16
- Installation route
- 电磁阀(分配阀)~蓄能器
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 1,100 mm
- Working pressure
- 22.5 MPa
- Left fitting
- 美制内螺纹74°内锥
- Right fitting
- 90°美制内螺纹74°内锥
- Quantity
- 1
