KHJ2174 Hose Repair Specifications

Excavator · Case · CX220C · Grease Lines

Finished length3,100 mm

Locate this hose

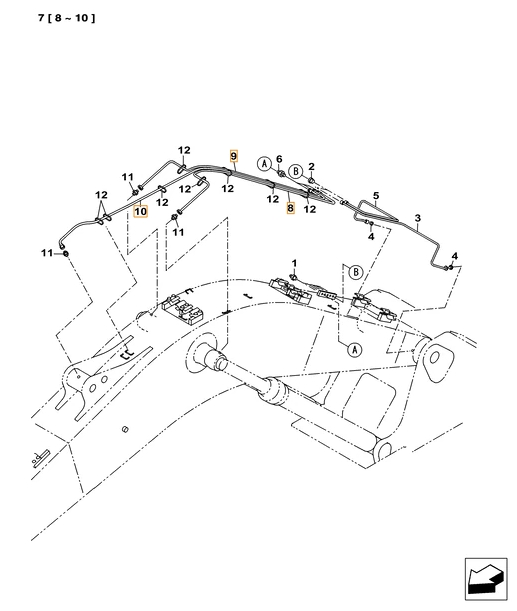

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number KHJ2174 before removing the hose.

Part number: KHJ2174
Diagram pipe number: 10
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,100 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length: 2,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
