Individual hose record
4390647 Hose Repair Specifications
Excavator · Hitachi · ZX120 · Attachments
Finished length1,950 mm
Locate this hose

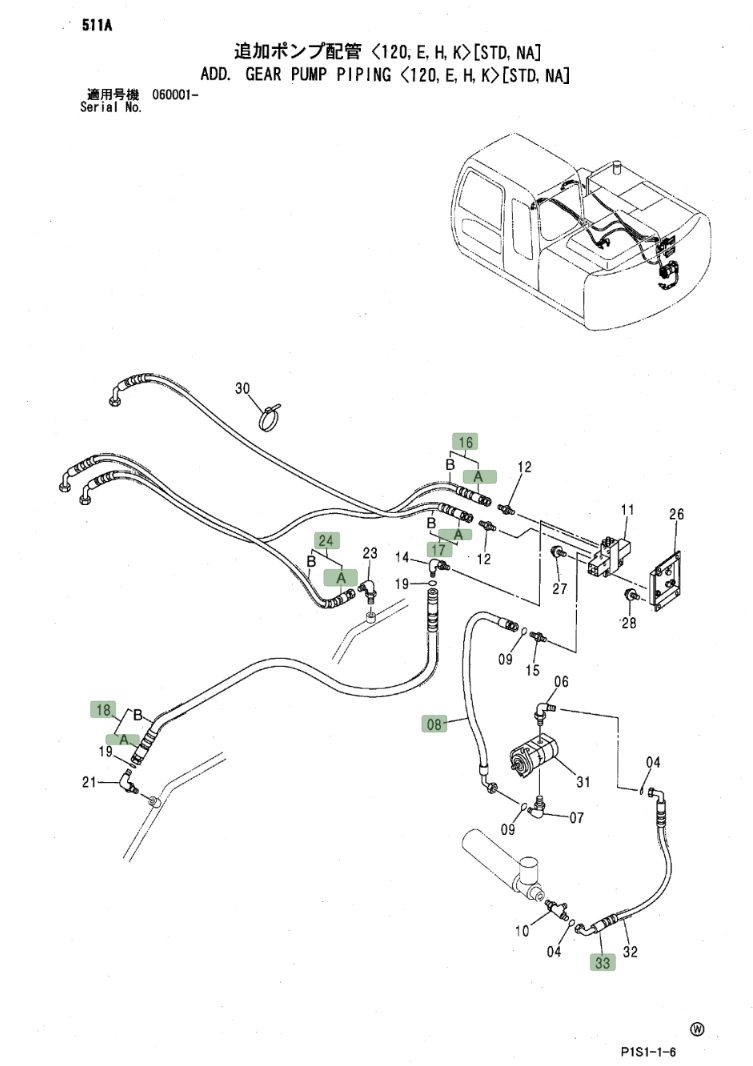

Installation diagram — Pipe No. 24A
Locate Pipe No. 24A in the diagram, then confirm part number 4390647 before removing the hose.
Repair specifications
- Part number
- 4390647
- Diagram pipe number
- 24A
- Installation route
- 大臂(辅助)~回油铁管(液压油箱)
- Hose specification
- DN10;2SN-6;34.5MPa
- Finished length
- 1,950 mm
- Working pressure
- 34.5 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 45°美制内螺纹37°内锥
- Quantity
- 1
