- Length
- 2,400 mm
- Specification
- DN6;1SN-04;22.5MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 90° elbow, British female thread, 60° external cone seatOriginal Chinese: 90°英制内螺纹60°外锥
Individual hose record
DS2092308 Hose Repair Specifications
Excavator · Doosan · DX62R-3 · Attachments – Lock Valve
Finished length3,640 mm
Locate this hose

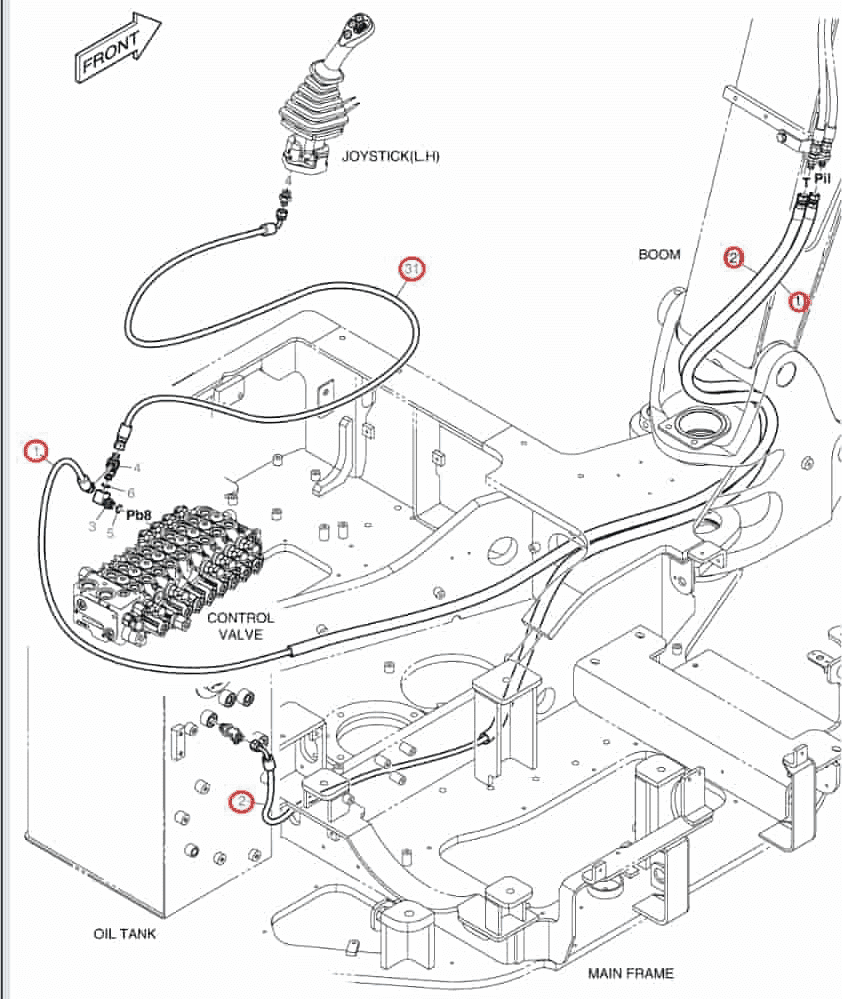

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number DS2092308 before removing the hose.
Repair specifications
- Part number
- DS2092308
- Diagram pipe number
- 1
- Installation route
- 铁管(小臂油缸锁止阀)PIL口~分配阀PB8口
- Hose specification
- DN6;1SN-04;22.5MPa
- Finished length
- 3,640 mm
- Working pressure
- 22.5 MPa
- Left fitting
- British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
- Right fitting
- 45° elbow, British female thread, 60° external cone seatOriginal Chinese: 45°英制内螺纹60°外锥
- Quantity
- 1
